Lower Oil Level Indicator Tube

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

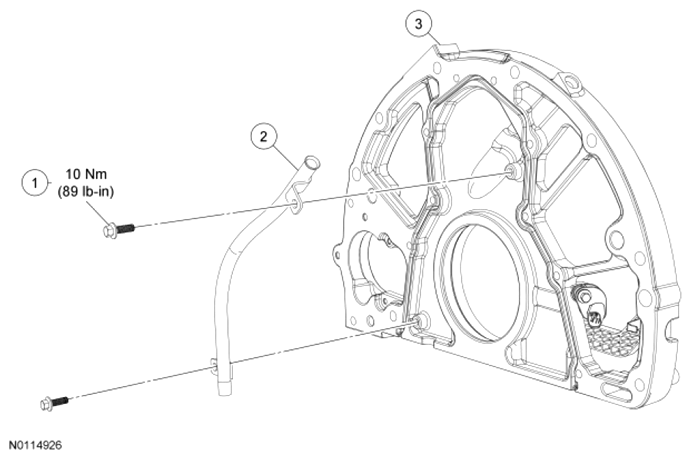

Fig 1: Lower Oil Level Indicator Tube Replacement Components With Torque Specifications
G07480938Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W500813 Lower oil level indicator tube bolt (2 required)
2 6754 Lower oil level indicator tube
3 6D083 Engine rear cover
