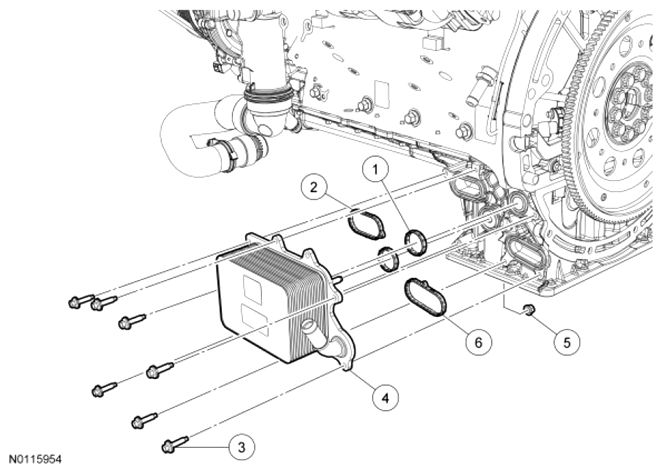

Oil Cooler Assembly
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
6L621 |
Oil cooler gasket (2 required) |
| 2 |
6L621 |
Oil cooler gasket |
| 3 |
W503276 |
Oil cooler bolt (7 required) |
| 4 |
6A642 |
Oil cooler assembly |
| 5 |
W520102 |
Oil cooler nut |
| 6 |
6L621 |
Oil cooler gasket |
