Special Tool(s)

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS

	4,400# Floor Crane, Fold Away 300-OTC1820E or equivalent
	Removal Bracket, Engine 303-1518

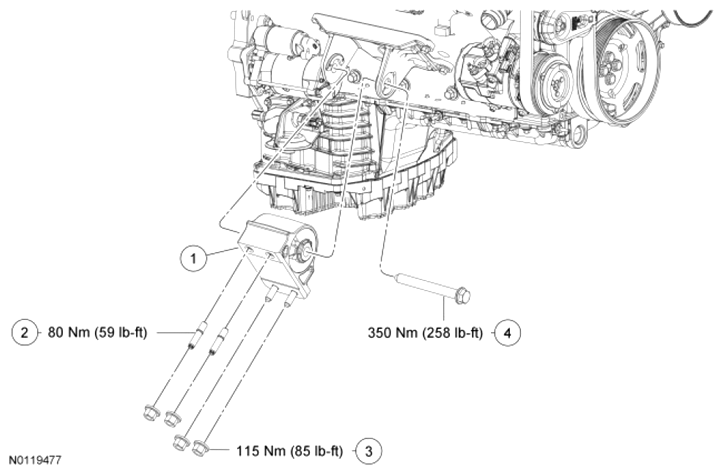

Fig 1: Engine Support Insulators Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	6038	RH engine support insulator
2	W790018	Engine support insulator stud (2 required)
3	W709771	Engine support insulator nut (4 required)
4	W715106	Engine support insulator cross bolt

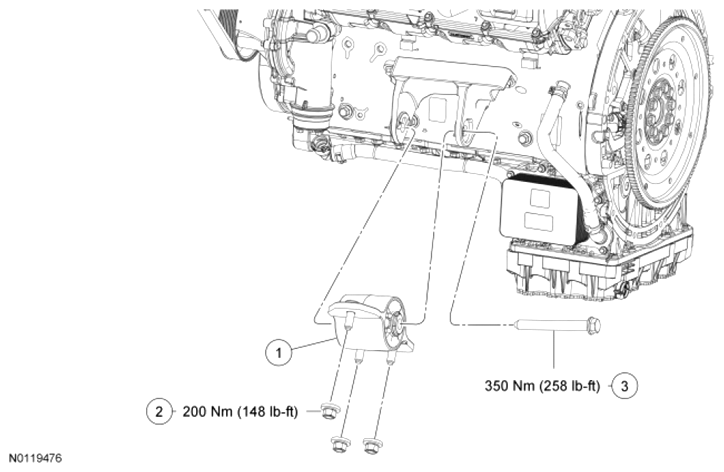

Fig 2: Engine Support Insulators Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	6038	LH engine support insulator
2	W711336	Engine support insulator nut (3 required)
3	W715106	Engine support insulator cross bolt
