Engine Rear Cover: Removal

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper oil level indicator and tube. For additional information, refer to OIL LEVEL INDICATOR AND TUBE  in this service information.
    2. NOTE: The upper oil pan must be removed prior to removing the engine rear cover or engine damage may occur.
  2. Remove the upper oil pan. For additional information, refer to OIL PAN - UPPER  in this service information.
  3. Remove the crankshaft rear seal. For additional information, refer to CRANKSHAFT REAR SEAL  in this service information.
  4. Remove the turbocharger downpipe bracket bolt.

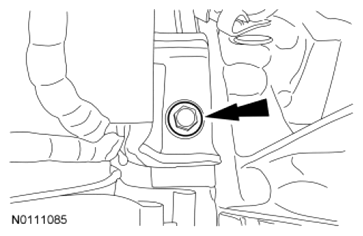

    Fig 1: Locating Turbocharger Downpipe Bracket Bolt
    G07480865Courtesy of FORD MOTOR CO.
  5. Disconnect the CKP electrical connector.

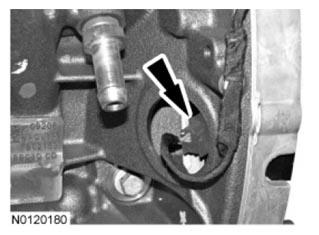

    Fig 2: Locating CKP Electrical Connector
    G07480866Courtesy of FORD MOTOR CO.
    6. NOTE: To prevent engine damage, replace damaged or missing dowel pins before installing the engine rear cover.
  6. Remove the 10 bolts and the engine rear cover.
    • Remove and discard the engine rear cover gasket.
