Engine Rear Cover: Notes

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

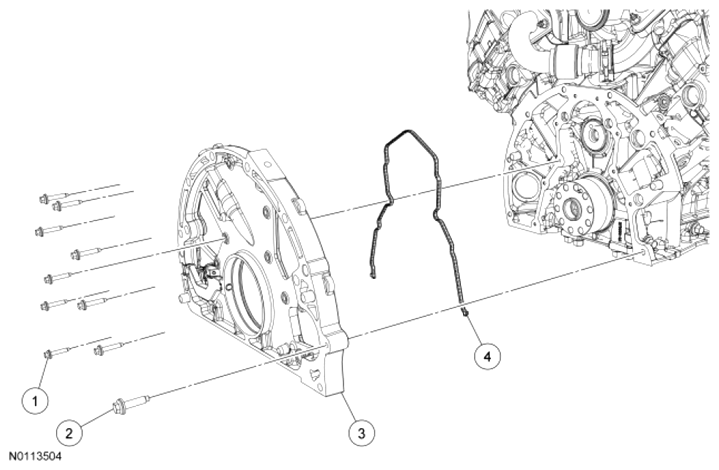

Fig 1: Identifying Engine Rear Cover Components
G07480864Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W709818 Engine rear cover bolt (9 required)
2 W714796 Engine rear cover bolt
3 6D082 Engine rear cover
4 6D083 Engine rear cover gasket
