Engine Front Cover: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Failure to properly align the engine front cover to the oil pan rail may result in engine damage.
    NOTE: Use care when installing the engine front cover not to scratch the crankshaft sealing surface.
    NOTE: Use the Gauge Bar to align the bottom of the engine front cover to the oil pan rail prior to torquing the engine front cover.
    Fig 1: Identifying Engine Front Cover Bolts Tightening Sequence
    G07480858Courtesy of FORD MOTOR CO.
  1. Using new gaskets, install the new engine front cover and 14 bolts.
    • Support the oil pump gerotor assembly in the engine front cover bore.
    • Position the engine front cover assembly over the crankshaft without contacting the front sealing surface.
    • Align the oil pump gerotor assembly with the crankshaft drive flats.
    • Align the engine front cover assembly locating pin.
    • Slide the front cover assembly over the crankshaft post to the cylinder block sealing surface.
    • Hand start bolt number 1 and 2.
    • Using the Gauge Bar, align the bottom of the engine front cover to the oil pan rail.
    • Install the remaining engine front cover bolts. Tighten in the sequence shown in illustration.
    • Tighten to 24 Nm (18 lb-ft).
  2. As a post-check, using the Gauge Bar and Feeler Gauge Set, verify alignment of the engine front cover to the oil pan rail is within 0.25 mm (0.009 in).
    • If the engine front cover alignment is not with specification, loosen the bolts and repeat step 1.
  3. Install the crankshaft front seal. For additional information, refer to CRANKSHAFT FRONT SEAL  in this service information.
  4. Connect the engine fill hose to the degas bottle and install the clip.

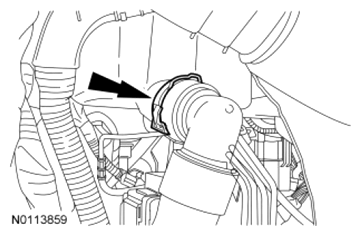

    Fig 2: Locating Engine Fill Hose Clip
    G07480859Courtesy of FORD MOTOR CO.
  5. Position back the engine wire harness and connect the engine wire harness retainer to the power steering pump bracket.
    Fig 3: Locating Engine Wire Harness Retainer Of Power Steering Pump Bracket
    G07480860Courtesy of FORD MOTOR CO.
  6. Connect the lower radiator hose and install the clip
    Fig 4: Locating Lower Radiator Hose Clip
    G07480861Courtesy of FORD MOTOR CO.
  7. Install the 2 bolts for the engine wire harness. Connect the power steering tube to the retainer.
    • Tighten to 10 Nm (89 lb-in).
    Fig 5: Locating Power Steering Tube Retainer And Engine Wire Harness Bolts
    G07480862Courtesy of FORD MOTOR CO.
  8. Connect the CMP  sensor electrical connector and the 3 wire retainers.
    Fig 6: Locating Camshaft Position Sensor Electrical Connector And Wire Retainers
    G07480863Courtesy of FORD MOTOR CO.
  9. Install the vacuum pump. For additional information, refer to POWER BRAKE SYSTEM ACTUATION article.
  10. Install the A/C compressor. For additional information, refer to HVAC - CLIMATE CONTROL SERVICING article.
  11. Install the cooling fan drive assembly, accessory drive belt tensioner and accessory drive belt. For additional information, refer to ENGINE ACCESSORY DRIVE BELTS article.
  12. Install the cooling fan, cooling fan stator and cooling module. For additional information, refer to ENGINE COOLING - DIESEL ENGINE article.
  13. Install the upper oil pan. For additional information, refer to OIL PAN - UPPER  in this service information.
