Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Failure to install the front crankshaft seal with the part numbers facing out may result in engine damage.
    NOTE: Do not discard the installation sleeve provided with the front crankshaft seal. It is used for installation of the crankshaft seal.
    NOTE: Check for correct orientation of the installation sleeve prior to sliding the seal on the crankshaft.
    NOTE: Apply clean engine oil to the seal and crankshaft sealing surface.

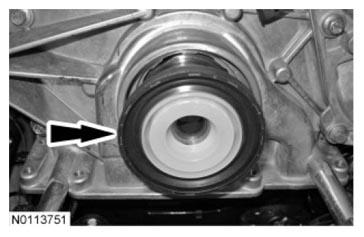

    Fig 1: Locating Front Crankshaft Seal
    G07480847Courtesy of FORD MOTOR CO.
  1. Position the installation sleeve onto the crankshaft, slide the new front crankshaft seal over the installation sleeve onto the crankshaft.
    • Remove the installation sleeve.
  2. Position the new front crankshaft slinger on the crankshaft.

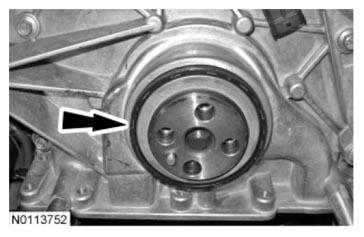

    Fig 2: Locating Front Crankshaft Slinger On Crankshaft
    G07480848Courtesy of FORD MOTOR CO.
  3. Using the Front Crank Seal Installer, install a new front crankshaft seal and front crankshaft slinger.

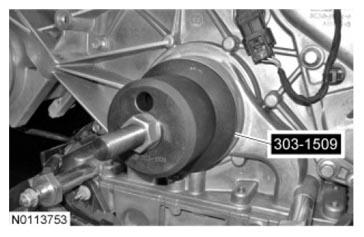

    Fig 3: Installing Front Crankshaft Seal And Front Crankshaft Slinger Using Front Crank Seal Installer
    G07480849Courtesy of FORD MOTOR CO.
  4. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY  in this service information.
