Rocker Arm Cleaning and Inspection

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Do not disassemble the rocker arm assembly. They are serviced as an assembly only.
    Fig 1: Identifying Rocker Arm
    G07480801Courtesy of FORD MOTOR CO.
  1. Clean all parts with a suitable solvent. Use filtered, compressed air to dry the parts.
  2. Looking from the side of the rocker arm assembly, inspect each rocker arm ball for scuffing. Install new rocker arm assemblies as required.
    Fig 2: Locating Rocker Arm Ball
    G07480802Courtesy of FORD MOTOR CO.
  3. Inspect each rocker arm pivot foot and cup for pitting and scuffing. Install new rocker arm assemblies as required.

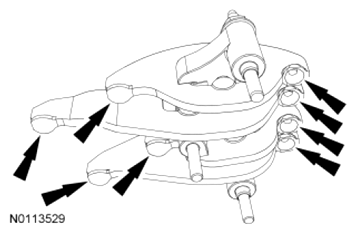

    Fig 3: Inspecting Each Rocker Arm Pivot Foot And Cup For Pitting And Scuffing
    G07480803Courtesy of FORD MOTOR CO.
