Flexplate Inspection

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the flexplate for damage. If damage is found, replace the flexplate.
    1. Inspect the flexplate for evidence of cracking around the ring gear weldments.
    2. Inspect the ring gear for worn, chipped or cracked ring gear teeth.
    3. Verify the flexplate weights are not missing or have cracked weldments.
    4. Inspect the flexplate for cracking around the webbing.

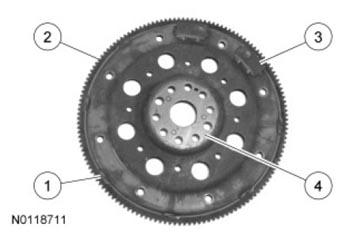

    Fig 1: Inspecting Flexplate
    G07480787Courtesy of FORD MOTOR CO.
