Crankshaft Connecting Rod Bearing Journal Diameter

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect crankshaft journals for scratches, grooves and scoring.
  2. Use a 50-75 mm (2-3 in) micrometer to measure the diameter of each journal. Measure each journal at 2 points, 90 degrees apart. Move the micrometer over the entire width of the journal. For additional information, refer to SPECIFICATIONS  in this service information.

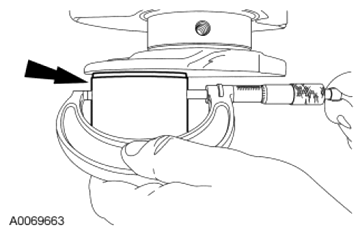

    Fig 1: Measuring Crankshaft Connecting Rod Bearing Journal Diameter
    G07480765Courtesy of FORD MOTOR CO.
