Over 14,000 GVWR Lower Intake and Turbocharger

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

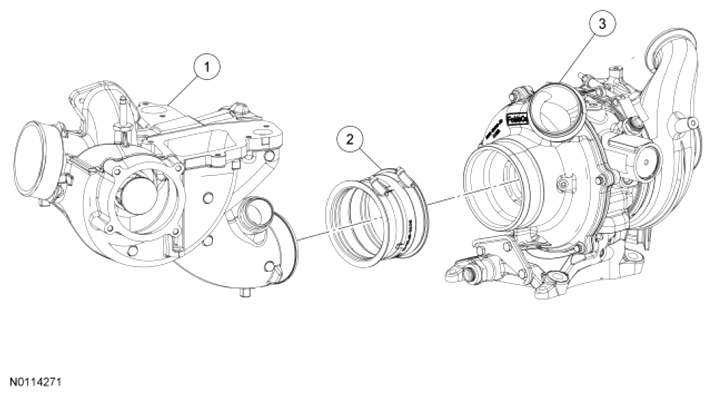

Fig 1: Identifying Over 14,000 GVWR Lower Intake And Turbocharger Components
G07481266Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 9J447 Lower intake manifold
2 9P432 Turbocharger inlet hose
3 9G438 Turbocharger
