Fuel Injection Pump, Engine Wire Harness and Misc
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

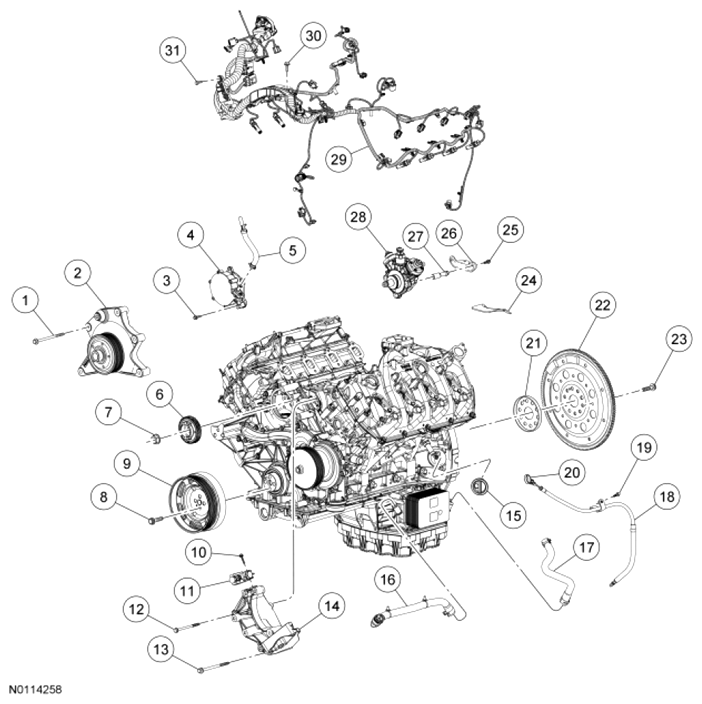

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W701629 | Cooling fan drive assembly bolt (5 required) |
| 2 | 8678 | Cooling fan drive assembly |
| 3 | W503277 | Vacuum pump bolt (4 required) |
| 4 | 2A451 | Vacuum pump |
| 5 | 9C493 | Vacuum pump manifold hose |
| 6 | 9F589 | Fuel injection pump drive gear |
| 7 | 00811 | Fuel injection pump drive gear nut |
| 8 | 6379 | Crankshaft pulley bolt (4 required) |
| 9 | 6312 | Crankshaft pulley |
| 10 | W708833 | Wastegate control valve bolt (2 required) |
| 11 | 9E882 | Wastegate control valve |
| 12 | W701057 | Power steering pump mounting bracket bolt (2 required) |
| 13 | W701629 | Power steering pump mounting bracket bolt (2 required) |
| 14 | 3A732 | Power steering pump mounting bracket |
| 15 | 6C070 | Cylinder block opening cover |
| 16 | 6A715 | Oil cooler outlet hose |
| 17 | 6A851 | Oil cooler inlet hose |
| 18 | 6754 | Oil level indicator tube |
| 19 | W500214 | Oil level indicator tube bolt |
| 20 | 6750 | Oil level indicator |
| 21 | 12A227 | Crankshaft sensor pulse ring |
| 22 | 6375 | Flexplate |
| 23 | 6379 | Flexplate bolt (10 required) |
| 24 | 9G478 | Turbocharger heat shield |
| 25 | W503275 | Fuel rail supply tube bracket bolt (2 required) |
| 26 | 9G290 | Fuel rail supply tube bracket |
| 27 | 9N943 | Fuel injection pump spacer (3 required) |
| 28 | 9A543 | Fuel injection pump |
| 29 | 12B637 | Engine wire harness |
| 30 | W500224 | Engine wire harness bolt |
| 31 | W503277 | Engine wire harness bolt (2 required) |
