Material Specifications
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |

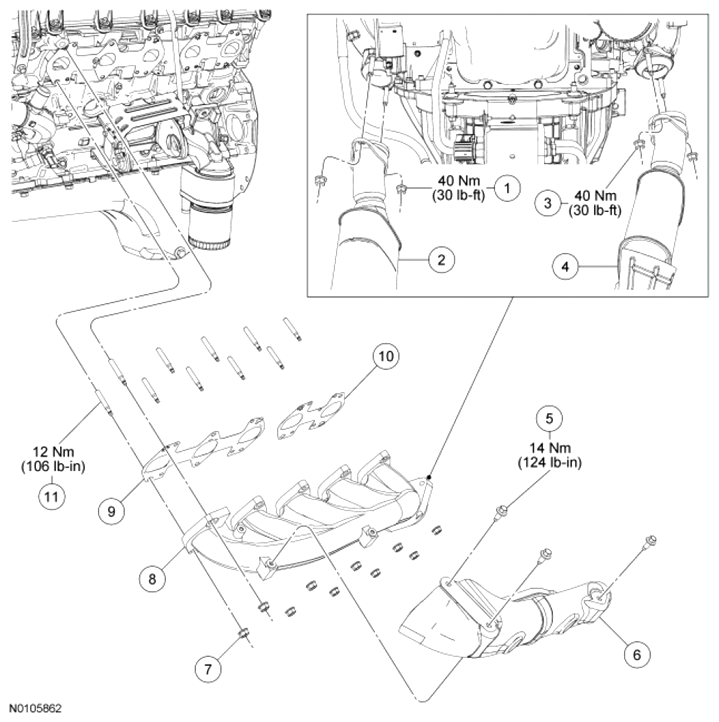

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W520514 | RH exhaust Y-pipe flange nut (2 required) |
| 2 | 5246 | RH exhaust Y-pipe flange |
| 3 | W520514 | LH exhaust Y-pipe flange nut (2 required) |
| 4 | 5246 | LH exhaust Y-pipe flange |
| 5 | W714133 | Exhaust manifold heat shield bolt (3 required) |
| 6 | 9Y427 | Exhaust manifold heat shield |
| 7 | W701706 | Exhaust manifold nut (10 required) |
| 8 | 9431 | Exhaust manifold |
| 9 | 9448 | Front exhaust manifold gasket |
| 10 | 9448 | Rear exhaust manifold gasket |
| 11 | W703902 | Exhaust manifold-to-cylinder head stud (10 required) |
