Wiring Harness Retainers, Intake Manifold and Gaskets
WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

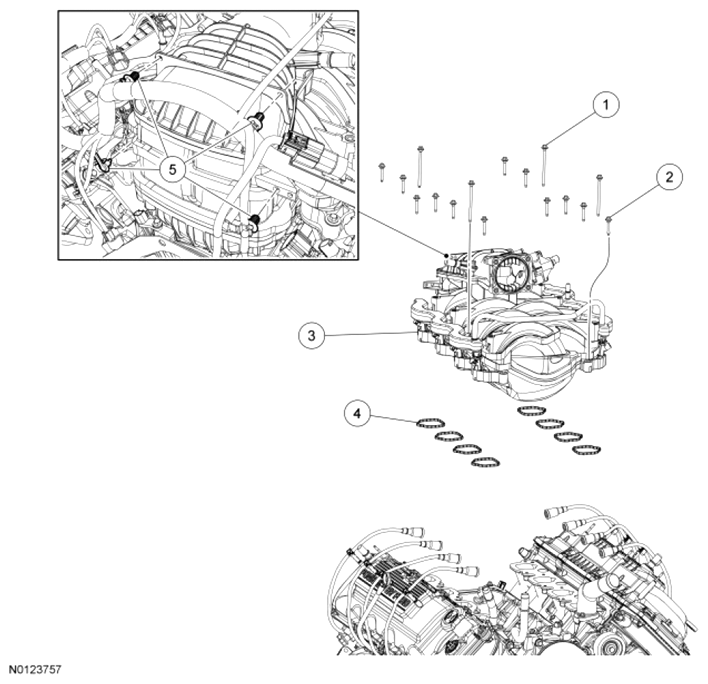

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W714633 |
Fuel rail bolt (4 required) |
| 2 |
9Y450 |
Intake manifold bolt (12 required) |
| 3 |
9424 |
Intake manifold |
| 4 |
9439 |
Intake manifold gasket (8 required) |
| 5 |
- |
Engine wiring harness retainers (part of 12C508) (4 required) |
