Window Glass - Rear Door, SuperCab: Removal

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and position the latch aside.
    Fig 1: Locating Rear Door Screws
    G06780641Courtesy of FORD MOTOR CO.
  2. Remove the rear door window trim panel.

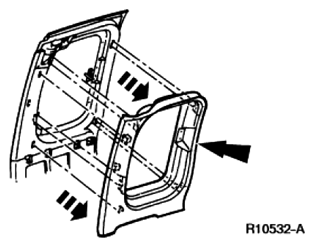

    Fig 2: Removing Rear Door Window Trim Panel
    G06780642Courtesy of FORD MOTOR CO.
  3. Remove the rear door window glass.
    1. Remove the nuts and clips.
    2. Remove the rear door window glass and frame.
      Fig 3: Identifying Rear Door Window Glass, Frame, Nuts And Clips
      G06780643Courtesy of FORD MOTOR CO.
  4. Remove excess foam butyl from the window frame and window opening.
