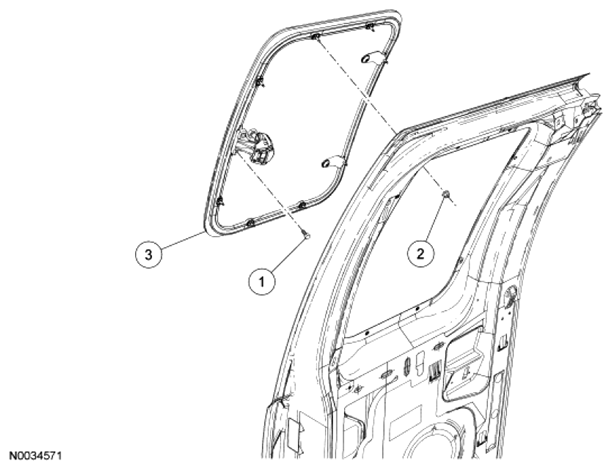

Glass, Frames and Mechanisms - Exploded View, Rear Door: SuperCab
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown in illustration, RH side similar.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
N607051 |
Screw (2 required) |
| 2 |
N621901 |
Nut (8 required) |
| 3 |
290701 LH/290700 RH |
Rear door window glass assembly |
- For additional information, refer to the appropriate procedure(s).
