Midship Fuel Tank - 114L (30 gal)
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

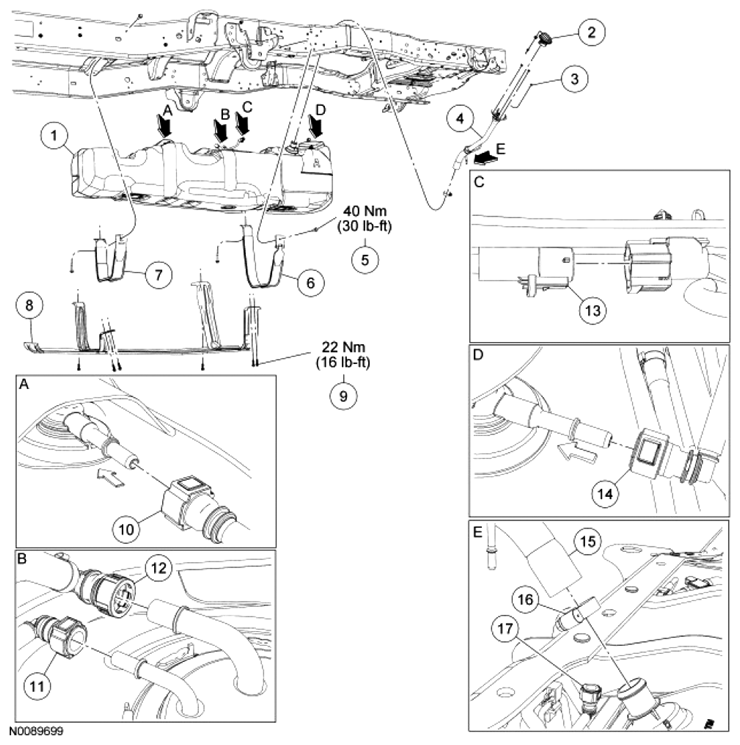

Gasoline shown in illustration, diesel similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9002 | Midship fuel tank |
| 2 | 9030 | Fuel tank filler cap |
| 3 | W711103 | Fuel tank filler pipe retaining screw (with plastic inserts, early build) (3 required) |
| 3 | N800481 | Fuel tank filler pipe retaining screw (without plastic inserts, late build) (3 required) |
| 4 | 9034 | Fuel tank filler pipe assembly |
| 5 | W506435 | Fuel tank strap bolt (4 required) |
| 6 | 9057 | Rear fuel tank strap |
| 7 | 9054 | Front fuel tank strap |
| 8 | 9K036 | Fuel tank shield |
| 9 | W709736 | Fuel tank shield bolt (6 required) |
| 10 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (part of 9S278) |
| 11 | - | Fuel supply tube-to-Fuel Pump (FP) module quick connect coupling (part of 9S278) |
| 12 | - | Fuel vapor tube-to-FP module quick connect coupling (part of 9S278) |
| 13 | - | FP module electrical connector (part of 9H307) |
| 14 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (part of 9S278) |
| 15 | - | Fuel tank filler pipe (part of 9034) |
| 16 | W711088 | Fuel tank filler pipe-to-fuel tank hose clamp |
| 17 | - | Fuel vapor tube-to-fuel tank filler pipe vent tube quick connect coupling (part of 9S278) |
