Differential Case and Ring Gear - Two-Piece, Traction-Lok®: Disassembly

WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential carrier. For additional information, refer to DIFFERENTIAL CARRIER .
  2. Remove and discard the 12 ring gear bolts.
    Fig 1: Locating Ring Gear Bolts
    G06459968Courtesy of FORD MOTOR CO.
  3. NOTE: The anti-lock speed sensor ring cannot be reused once removed.
  4. Insert a punch in the bolt holes and drive the ring gear off.
    • If necessary, remove the anti-lock speed sensor ring and discard it.
      Fig 2: Removing Anti-Lock Speed Sensor Ring
      G06777312Courtesy of FORD MOTOR CO.
  5. Position the Differential Clutch Preload Gauge in a vise.
    Fig 3: Installing Differential Clutch Preload Gauge In Vise
    G06777282Courtesy of FORD MOTOR CO.
  6. Position the differential case on the Differential Clutch Preload Gauge.
    Fig 4: Positioning Differential Case On Differential Clutch Preload Gauge
    G06777314Courtesy of FORD MOTOR CO.
  7. Index-mark the differential case halves.
    Fig 5: Locating Differential Case Halves Index-Mark
    G06777315Courtesy of FORD MOTOR CO.
  8. Remove the 6 differential case bolts.

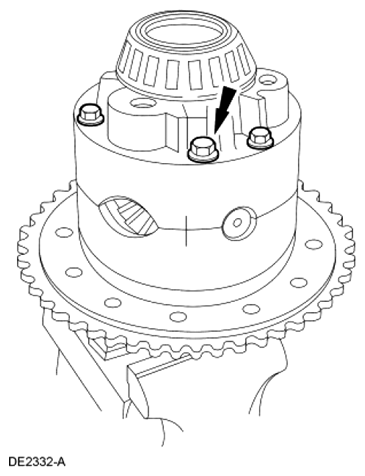

    Fig 6: Locating Differential Case Bolts
    G06777316Courtesy of FORD MOTOR CO.
  9. Remove the right differential case half and differential side gear.

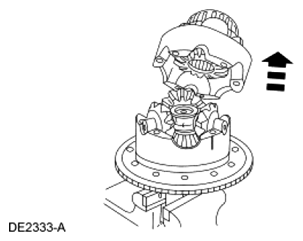

    Fig 7: Removing Right Differential Case Half And Differential Side Gear
    G06777317Courtesy of FORD MOTOR CO.
  10. Remove the differential pinion shaft, 3 differential pinion gears and 3 differential gear thrust washers.
    Fig 8: Removing Differential Pinion Shaft, Differential Pinion Gears And Differential Gear Thrust Washers
    G06777318Courtesy of FORD MOTOR CO.
  11. Remove the differential pinion gears and thrust washers from the differential pinion shaft.

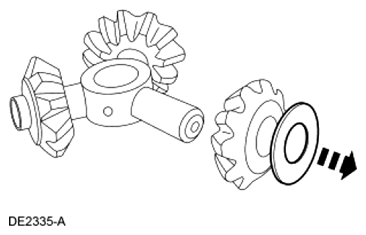

    Fig 9: Removing Differential Pinion Gears And Thrust Washers From Differential Pinion Shaft
    G06777319Courtesy of FORD MOTOR CO.
  12. Remove the differential side gears and differential clutch packs from each differential case half and tag them RH and LH.
    Fig 10: Removing Differential Side Gears And Differential Clutch Packs From Differential Case Half
    G06777320Courtesy of FORD MOTOR CO.
  13. Remove the Belleville spring and shim(s) from both differential clutch packs.

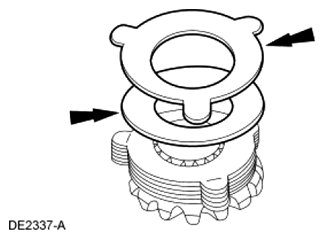

    Fig 11: Locating Belleville Spring And Shim
    G06777321Courtesy of FORD MOTOR CO.
