Cylinder Head - Body Off: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Caps, Fuel System	310-158
Courtesy of FORD MOTOR CO.	Cups, Injector	303-1261
Courtesy of FORD MOTOR CO.	Heavy Duty Floor Crane	014-00072 or equivalent
Courtesy of FORD MOTOR CO.	Holding Rack, Fuel Injector	303-D114 (D94T-9000-E1) or equivalent
Courtesy of FORD MOTOR CO.	Lifting Bracket, Cylinder Head	303-759

Material

Item	Specification
Motorcraft SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent	WSS-M2C171-E

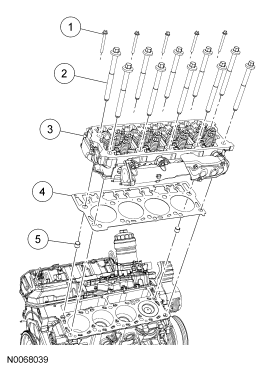

Fig 1: Exploded View Of Left Cylinder Head

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9N517	Hex flange bolt (5 required)
2	6065	Cylinder head bolt (10 required)
3	6050	Cylinder head assembly
4	6083	Cylinder head gasket
5	6B041	Dowel (2 required)

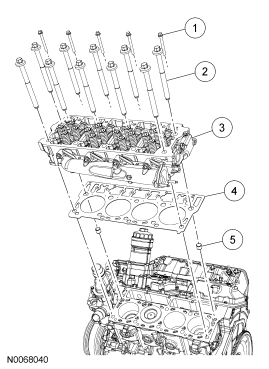

Fig 2: Exploded View Of Right Cylinder Head

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9N517	Hex flange bolt (5 required)
2	6065	Cylinder head bolt (10 required)
3	6049	Cylinder head assembly
4	6051	Cylinder head gasket
5	6B041	Dowel (2 required)
