Oil Cooler - Body On: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

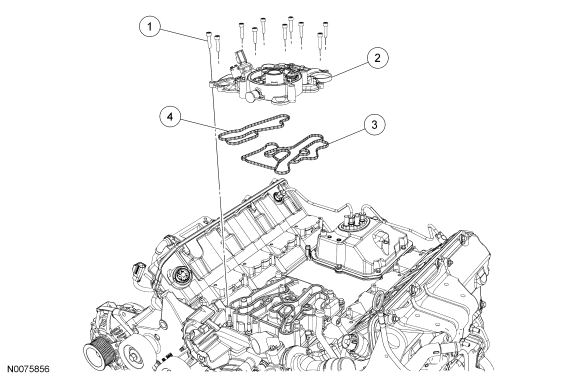

Fig 1: Exploded View Of Oil Filter Base
GF0048606Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W300022 Oil filter base screw (10 required), self tapping
2 6881 Oil filter base
3 6619 Oil filter base-to-oil cooler cover gasket (oil)
4 6619 Oil filter base-to-oil cooler cover gasket (coolant)

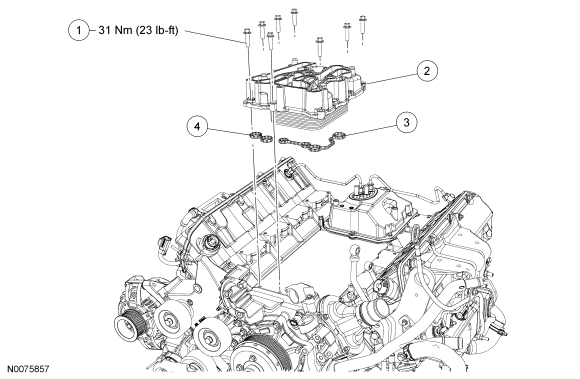

Fig 2: Exploded View Of Oil Cooler Assembly With Torque Specification
GF0048607Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W300006 Oil cooler cover bolt (8 required)
2 6A642 Oil cooler cover assembly
3 6619 Oil cooler cover gasket (oil)
4 6619 Oil cooler cover gasket (coolant)
