In-Vehicle Servicing: Flexplate: Installation

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flexplate and 10 new bolts. Tighten the new bolts in 2 stages, in the sequence shown.
    • Stage 1: Tighten to 5 Nm (44 lb-in).
    • Stage 2: Tighten to 94 Nm (69 lb-ft).

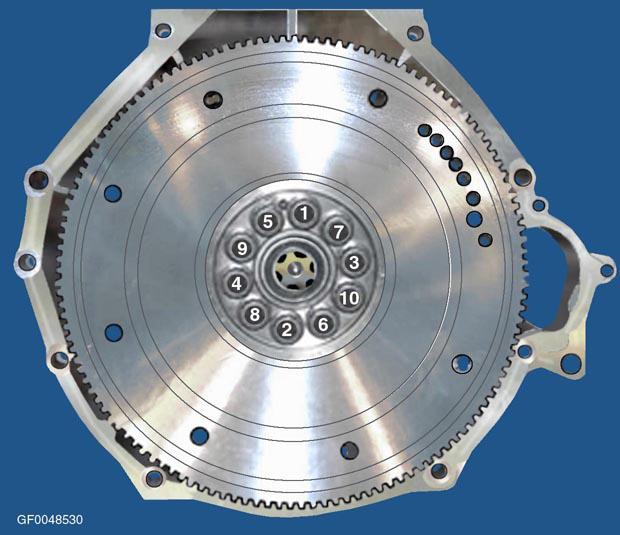

    2. Fig 1: Tightening Flexplate Bolts In Sequence
    GF0048530Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - TORQSHIFT article.
