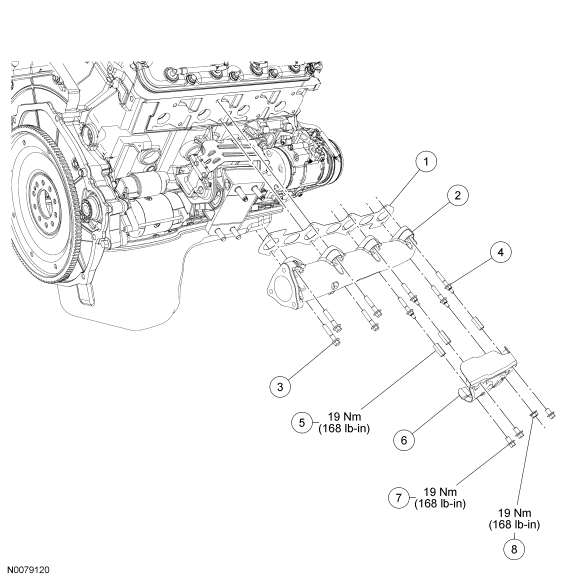

Exhaust Manifold - RH: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9448 | Exhaust manifold gasket |
| 2 | 9430 | Exhaust manifold |
| 3 | W302675 | Exhaust manifold bolt (4 required) |
| 4 | W302647 | Exhaust manifold stud bolt (4 required) |
| 5 | W302498 | Spacer (3 required) |
| 6 | 5F223 | Heat shield |
| 7 | W302499 | Heat shield bolt (3 required) |
| 8 | W302494 | Heat shield retaining nut |
