Exhaust Manifold - RH: Installation

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Position a new exhaust manifold gasket and the exhaust manifold. Install the 4 new stud bolts and the 4 new bolts. Tighten in 2 stages in the sequence shown.
    • Stage 1: Tighten to 25 Nm (18 lb-ft).
    • Stage 2: Tighten again to 25 Nm (18 lb-ft).
  2. Fig 1: Tightening Exhaust Manifold Gasket Bolts In Sequence
    GF0048559Courtesy of FORD MOTOR CO.
  3. Install the 3 spacers on the exhaust manifold stud bolts.
    • Tighten to 19 Nm (168 lb-in).
  4. Position the exhaust manifold heat shield. Install the nut and 3 bolts.
    • Tighten to 19 Nm (168 lb-in).
  5. Vehicles with automatic transmission

  6. Position back the transmission fluid level indicator tube and install the nut.
    • Tighten to 8 Nm (71 lb-in).
  7. Fig 2: Locating Transmission Fluid Level Indicator Tube Nut
    GF0048558Courtesy of FORD MOTOR CO.

    Vehicles with A/C

    NOTE: Install a new O-ring seal and gasket.
  8. Install the A/C hoses and 2 nuts.
    • Tighten to 15 Nm (133 lb-in).
  9. Fig 3: Locating A/C Hoses & Nuts
    GF0048557Courtesy of FORD MOTOR CO.
  10. Position back and connect the A/C compressor wire retainer.
  11. Fig 4: Locating A/C Compressor Wire Retainer
    GF0048556Courtesy of FORD MOTOR CO.

    All vehicles

  12. Position back the starter wiring. Install the 2 retaining nuts for the starter solenoid wiring.
    • Tighten the large nut to 12 Nm (106 lb-in) and the small nut to 6 Nm (53 lb-in).
  13. Fig 5: Locating Retaining Nuts For Starter Solenoid Wiring
    GF0048555Courtesy of FORD MOTOR CO.
  14. Install the cover for the starter terminals.
  15. Fig 6: Locating Cover For Starter Terminals
    GF0048554Courtesy of FORD MOTOR CO.
  16. Position back the battery cable bracket and install the nut.
    • Tighten to 25 Nm (18 lb-ft).
  17. Fig 7: Locating Battery Cable Bracket & Nut
    GF0048553Courtesy of FORD MOTOR CO.
  18. Position back the RH turbocharger inlet pipe. Install a new gasket and the 3 new RH turbocharger inlet pipe-to-exhaust manifold studs.
    • Tighten to 18 Nm (159 lb-in).
  19. Fig 8: Locating RH Turbocharger Inlet Pipe-To-Exhaust Manifold Studs
    GF0048551Courtesy of FORD MOTOR CO.
  20. Install a new turbocharger inlet pipe gasket and loosely install the 3 new RH turbocharger inlet pipe bolts.
    • Tighten the top 2 bolts to 25 Nm (18 lb-ft).
  21. Fig 9: Locating RH Turbocharger Inlet Pipe Bolts
    GF0048552Courtesy of FORD MOTOR CO.
    NOTE: Due to limited access, one of the specific Half-moon wrenches and other tools described must be used to correctly tighten the fasteners in this step. Failure to follow this instruction may result in engine failure.
    NOTE: To complete this step, it will be necessary to use the following tools:
    • A 3/8-in drive torque wrench that is 241.3 mm (9.5 in) or 368.3 mm (14.5 in) from center of the handle to the center of the square drive.
    • One of the 10-mm/12-mm Half-moon wrenches listed in the following chart.
    • A 12-mm Allen socket (to drive the Half-moon wrench).
    NOTE: To obtain the required torque value of 25 Nm (18 lb-ft), it will be crucial to orient the Half-moon wrench in the direction shown and 180 degrees (straight out) from the torque wrench. The torque wrench must be set to the value specified in the following chart, for the Half-moon wrench and torque wrench length being used.
    Fig 10: Tightening RH Turbocharger Inlet Pipes-To-Turbocharger Bottom Bolt
    GF0048560Courtesy of FORD MOTOR CO.
  22. Tighten the RH turbocharger inlet pipes-to-turbocharger bottom bolt.
    • Refer to the following chart for torque wrench setting, based on the specific Half-moon wrench and torque wrench length being used.

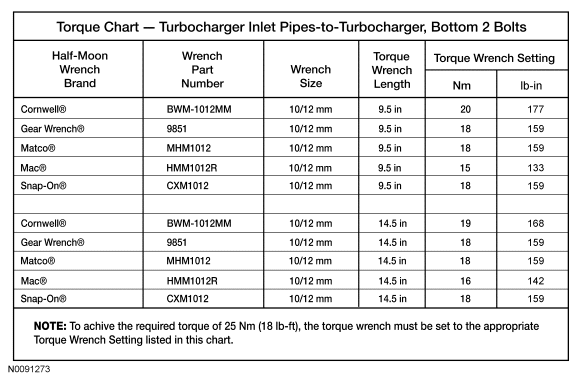

  23. Fig 11: Torque Wrench Chart
    GF0048561Courtesy of FORD MOTOR CO.
    NOTE: Make sure the correct bolts are installed in the bracket or damage to the bracket can occur.
  24. Position the 2 EGR-OC pipe and loosely install the 2 new bracket bolts. Install a new gasket and loosely install the 2 new bolts.
  25. Fig 12: Locating EGR-OC-to-Bracket Bolts
    GF0048548Courtesy of FORD MOTOR CO.
  26. Install the 3 new RH turbocharger inlet pipe-to-exhaust manifold nuts.
    • Tighten to 31 Nm (23 lb-ft).
  27. Fig 13: Locating RH Turbocharger Inlet Pipe-To-Exhaust Manifold Nuts
    GF0048550Courtesy of FORD MOTOR CO.
  28. Install the EGRT sensor into the RH turbocharger inlet pipe.
    • Tighten to 44 Nm (32 lb-ft).
  29. Fig 14: Locating Exhaust Gas Recirculation Temperature (EGRT) Sensor From RH Turbocharger Inlet Pipe
    GF0048549Courtesy of FORD MOTOR CO.
  30. Install the RH fender splash shield. For additional information, refer to FRONT END BODY PANELS article.
  31. Install the RH front tire and wheel. Carry out Wheel and Tire - SRW or Wheel and Tire - DRW. For additional information, refer to WHEELS AND TIRES article.
  32. NOTE: Failure to install and correctly tighten the exhaust gas recirculation (EGR)-Oxidation Catalytic Converter (OC) pipe support bolts will result in damage to the horizontal EGR cooler and possible engine damage.
  33. Install the bracket, washers and loosely install the 2 new bolts for the EGR-OC pipe bracket.
  34. Fig 15: Locating Bracket, Washers & Bolts From EGR-OC Pipe Bracket
    GF0048562Courtesy of FORD MOTOR CO.
  35. Install the new gasket and the 2 new bolts for the EGR cooler.
    • Tighten to 31 Nm (23 lb-ft).
  36. Fig 16: Locating EGR-OC-To-EGR Cooler Bolts
    GF0048547Courtesy of FORD MOTOR CO.
  37. Tighten the 2 EGR-OC pipe bolts at the RH turbocharger inlet pipe.
    • Tighten to 31 Nm (23 lb-ft).
  38. Fig 17: Tightening RH Turbocharger Inlet Pipe-To-EGR-OC Bolts
    GF0048563Courtesy of FORD MOTOR CO.
  39. Tighten the 2 bolts for the EGR-OC pipe bracket at the turbocharger.
    • Tighten to 31 Nm (23 lb-ft).
  40. Fig 18: Tightening Bolts For EGR-OC Pipe Bracket At Turbocharger
    GF0048564Courtesy of FORD MOTOR CO.
  41. Install a new gasket and loosely install the new clamp for the exhaust downpipe.
    • Align the new exhaust downpipe-to-turbocharger clamp so that the exhaust downpipe clip and the opening in the exhaust downpipe-to-turbocharger clamp are aligned and tighten to maintain position.
    • Align the downpipe so that the area just above the flat in the pipe is approximately 20 mm (0.787 in) from the frame.
  42. Fig 19: Locating Exhaust Downpipe Clamp
    GF0048544Courtesy of FORD MOTOR CO.
    NOTE: Failure to install and correctly tighten the exhaust gas recirculation (EGR)-OC pipe support bolt will result in damage to the horizontal EGR cooler and possible engine damage.
  43. Tighten the bolt for the EGR-OC pipe bracket.
    • Tighten to 31 Nm (23 lb-ft).
  44. Fig 20: Tightening EGR-OC Bracket-To-Cylinder Head Bracket Bolt
    GF0048565Courtesy of FORD MOTOR CO.
    NOTE: Failure to install and correctly tighten the exhaust gas recirculation (EGR)-Oxidation Catalytic Converter (OC) pipe support bolt will result in damage to the horizontal EGR cooler and possible engine damage.
    NOTE: Due to limited access, one of the specific Half-moon wrenches and other tools described must be used to correctly tighten the fasteners in this step. Failure to follow this instruction may result in engine failure.
    NOTE: To complete this step, it will be necessary to use the following tools:
    • A 3/8-in drive torque wrench that is 368.3 mm (14.5 in) or 381.0 mm (15.0 in) from the center of the handle to the center of the square drive.
    • One of the 11-mm/13-mm Half-moon wrenches listed in the following chart.
    • A 11-mm Allen socket (to drive the Half-moon wrench).
    NOTE: To obtain the required torque value of 63 Nm (46 lb-ft), it will be crucial to orient the Half-moon wrench in the direction shown and 180 degrees (straight out) from the torque wrench. The torque wrench must be set to the value specified in the following chart, for the Half-moon wrench and torque wrench length being used.
  45. Tighten the EGR-OC pipe bracket-to-LH cylinder head bolt.
    • Refer to the following chart for torque wrench setting, based on the specific Half-moon wrench and torque wrench length being used.

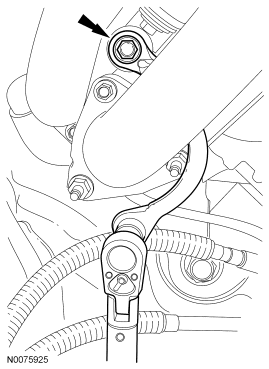

  46. Fig 21: Locating EGR-OC Pipe Bracket-To-LH Cylinder Head Bolt
    GF0048566Courtesy of FORD MOTOR CO.

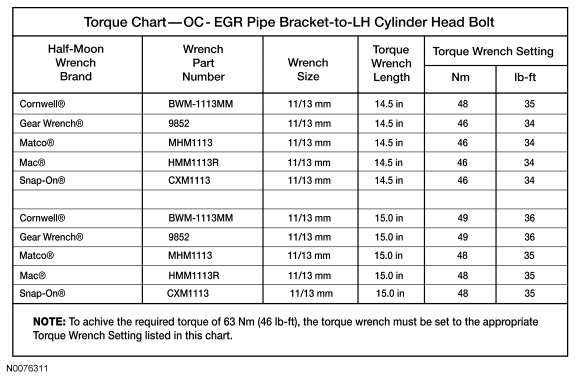

    Fig 22: Torque Wrench Chart
    GF0048567Courtesy of FORD MOTOR CO.
  47. Connect the EP sensor tube to the EGR-OC pipe.
    • Tighten to 20 Nm (177 lb-in).
  48. Fig 23: Locating Exhaust Pressure (EP) Sensor Tube From EGR-OC Pipe
    GF0048545Courtesy of FORD MOTOR CO.
  49. Install the 2 exhaust downpipe-to-OC pipe bolts.
    • Tighten to 40 Nm (30 lb-ft).
  50. Fig 24: Locating Exhaust Downpipe-To-Oxidation Catalytic Converter (OC) Pipe Bolts
    GF0048543Courtesy of FORD MOTOR CO.
  51. Tighten the clamp for the exhaust downpipe.
    • Tighten to 15 Nm (133 lb-in).
  52. Fig 25: Locating Exhaust Downpipe Clamp
    GF0048544Courtesy of FORD MOTOR CO.
  53. Connect the battery ground cables. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
  54. Vehicles with A/C

  55. Evacuate and charge the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS article.
  56. All vehicles

  57. Position the auxiliary air intake hose in the vehicle.
  58. Fig 26: Locating Auxiliary Air Intake From Cowl
    GF0048542Courtesy of FORD MOTOR CO.
  59. Install the ACL assembly. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING article.
