Exhaust Manifold - LH: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

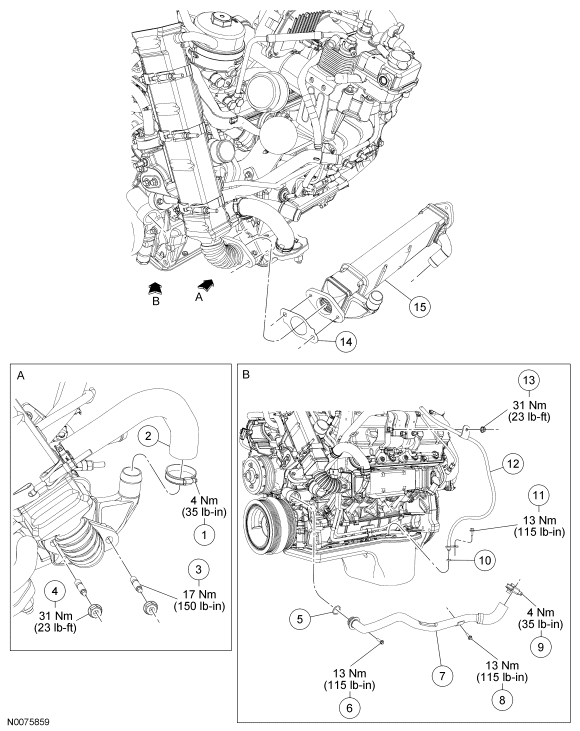

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8287 |
EGR cooler coolant outlet hose clamp |
| 2 |
9F469 |
EGR cooler coolant outlet hose |
| 3 |
W302633 |
EGR cooler outlet stud (2 required) |
| 4 |
W300050 |
Horizontal EGR cooler outlet nut (2 required) |
| 5 |
W301924 |
EGR coolant supply tube assembly O-ring seal |
| 6 |
W300002 |
EGR coolant supply tube bolt |
| 7 |
9F469 |
EGR coolant supply tube assembly |
| 8 |
W300009 |
EGR coolant supply tube bolt |
| 9 |
8287 |
EGR coolant supply tube clamp |
| 10 |
6753 |
Oil level indicator tube O-ring seal |
| 11 |
W300009 |
Oil level indicator tube bolt |
| 12 |
6754 |
Oil level indicator tube |
| 13 |
W300050 |
Oil level indicator tube nut |
| 14 |
9H454 |
Horizontal EGR cooler outlet gasket |
| 15 |
9F464 |
Horizontal EGR cooler |
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9448 |
Exhaust manifold gasket |
| 2 |
9430 |
Exhaust manifold |
| 3 |
9F465 |
Horizontal EGR cooler bracket |
| 4 |
W302550 |
Horizontal EGR cooler bracket bolt (4 required) |
| 5 |
W302675 |
Exhaust manifold bolt (4 required) |
| 6 |
8287 |
Clamp (2 required) |
| 7 |
W302549 |
Pin (2 required) |
