Engine Front Cover: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent	WSS-M2C171-E
RTV Silicone Sealant TA-31	-

Fig 1: Exploded View Of Power Steering Pump With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W700839	Power steering pump bolt (3 required)
2	3A696	Power steering pump assembly
3	3F523	Power steering hose assembly
4	W520112	Power steering hose retainer nut
5	3E525	Power steering reservoir-to-pump hose assembly

Fig 2: Exploded View Of EGR Cooler With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Exhaust Gas Recirculation Temperature (EGRT) sensor electrical connector (part of 12B637)
2	9F466	EGR valve coolant supply hose
3	8287	EGR valve coolant supply hose clamp
4	-	Retaining clip (part of 9Y439)
5	W302551	Retaining nut
6	-	Retaining clip
7	W302551	Vertical EGR cooler nut
8	-	Vertical EGR cooler stud
9	W302651	Vertical EGR cooler bolt
10	9E933	Vertical EGR cooler gasket
11	9P456	Vertical EGR cooler assembly
12	W300006	Vertical EGR cooler upper mounting bolt
13	-	EGR cooler coolant return tube bolt
14	W301924	O-ring seal
15	W302054	Vertical EGR cooler mounting bracket stud bolt
16	W3000014	Vertical EGR cooler mounting bracket bolt (2 required)
17	-	Vertical EGR cooler mounting bracket bolt
18	W300050	Vertical EGR cooler nut (2 required)
19	8287	Vertical EGR cooler coolant hose clamp
20	9H454	Horizontal EGR cooler outlet gasket

Fig 3: Exploded View Of Radiator Hoses

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8286	Upper radiator hose retaining clip
2	8B274	Upper radiator hose
3	8286	Lower radiator hose retaining clip
4	8B273	Lower radiator hose

Fig 4: Exploded View Of Engine Front View With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	19A216	Accessory drive belt idler pulley assembly
2	-	Accessory drive belt idler pulley assembly bolt (part of 19A216)
3	6B209	Accessory drive belt tensioner assembly
4	-	Accessory drive belt tensioner assembly bolt (part of 6B209)
5	6B209	A/C drive belt tensioner assembly
6	-	A/C drive belt tensioner assembly bolt (part of 6B209)
7	W301924	EGR coolant supply tube O-ring seal
8	W300005	EGR coolant supply tube bolt
9	9F468	EGR coolant supply tube
10	W300009	EGR coolant supply tube bolt
11	8287	EGR coolant supply tube hose clamp
12	W301572	Heater return tube bolt
13	W301924	Heater return tube O-ring seal
14	8592	Heater return tube
15	W300009	Heater return tube bolt

Fig 5: Exploded View Of Heater Supply Tube With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8592	Heater supply tube
2	W300005	Heater supply tube bolt (2 required)
3	12B637	Engine wiring harness
4	W300049	Heater supply tube nut

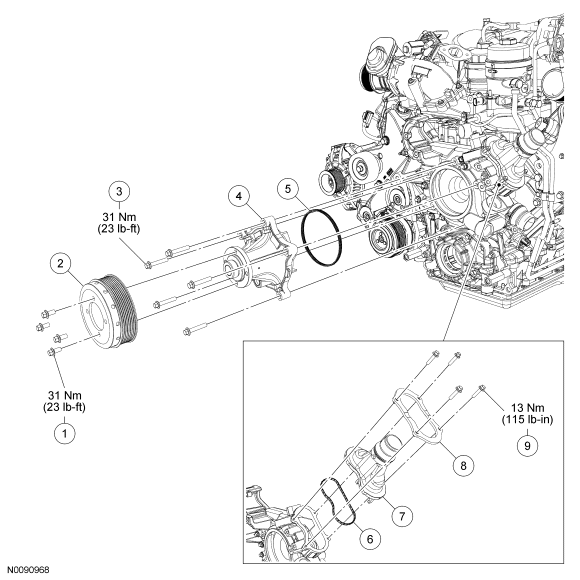

Fig 6: Exploded View Of Coolant Pump & Thermostat With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W300001	Coolant pump pulley bolt (4 required)
2	8509	Coolant pump pulley
3	W301572	Coolant pump bolt (5 required)
4	8501	Coolant pump
5	8507	Coolant pump gasket
6	8255	Thermostat housing gasket
7	8592	Thermostat housing
8	-	Thermostat housing collar (part of 8592)
9	W300005	Thermostat housing collar bolt (4 required)

Fig 7: Exploded View Of Engine Front Cover With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W302456	Oil pump housing bolt (7 required)
2	-	Oil pump housing bolt (4 required)
3	6616	Oil pump housing
4	-	Inner rotor (part of 6600)
5	-	Outer rotor (part of 6600)
6	6619	Oil pump assembly gasket
7	W302456	Engine front cover bolt (3 required)
8	W302455	Engine front cover bolt (7 required)
9	W300005	EGR coolant adapter bolt
10	9P443	EGR coolant adapter
11	W301924	EGR coolant adapter O-ring seal
12	6019	Engine front cover
13	6D081	Engine front cover gasket
