Crankshaft Pulley: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-C) or equivalent | |
| Strap Wrench | 303-D055 (D85L-6000-A) or equivalent. |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent |
WSS-M2C171-E |

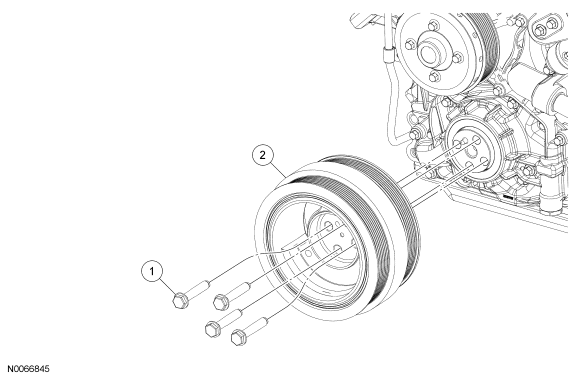

| Item | Part Number | Description |
|---|---|---|
| 1 | W300024 | Crankshaft pulley bolt (4 required) |
| 2 | 6316 | Crankshaft pulley |
