Steering Column Multifunction Switch: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

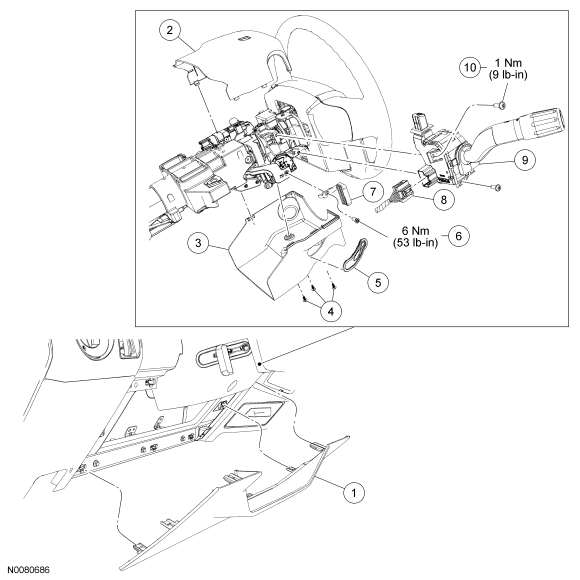

| Item | Part Number | Description |
|---|---|---|
| 1 | 78044F08 | Steering column opening trim |
| 2 | 3530A | Upper steering column shroud |
| 3 | 3530B | Lower steering column shroud |
| 4 | W710485 | Lower steering column shroud screws (3 required) |
| 5 | - | Tilt lever dust boot (part of 3530B) |
| 6 | - | Tilt lever screw (part of 3F609) |
| 7 | 3F609 | Tilt lever |
| 8 | - | Multifunction switch electrical connector (part of 14401) |
| 9 | 13K359 | Multifunction switch |
| 10 | W506943 | Multifunction switch screw (2 required) |
