Door Trim Panel - Rear, SuperCab

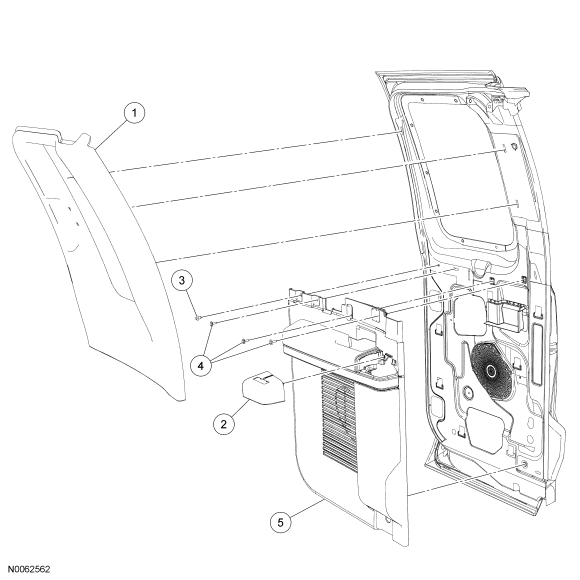

Fig 1: Exploded View Of Rear Door Trim Panel - SuperCab

Courtesy of FORD MOTOR CO.

Upper door trim panel

1. Remove the 2 rear window latch screws and position aside the rear window latch.
Fig 2: Locating Rear Window Latch Screws
Courtesy of FORD MOTOR CO.
NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide.
2. Remove the shoulder safety belt guide.
   1. Position the shoulder safety belt guide cover upward.
   2. Remove the shoulder safety belt guide bolt.
      • To install, tighten to 40 Nm (30 lb-ft).
   3. Remove the shoulder safety belt guide.
Fig 3: Locating Shoulder Safety Belt Guide Bolt
Courtesy of FORD MOTOR CO.
3. Remove the rear door upper trim panel.
   • Pull outward to release the rear door upper trim panel clips.

Lower door trim panel

4. Lift up and remove the shoulder safety belt finish trim panel.
   • Route the shoulder safety belt through the shoulder safety belt finish trim panel opening.
Fig 4: Lifting Up & Removing Shoulder Safety Belt Finish Trim Panel
Courtesy of FORD MOTOR CO.
5. Remove the safety belt anchor.
   • Position the safety belt anchor cover downward.
   • Remove the safety belt anchor bolt.
     • To install, tighten to 40 Nm (30 lb-ft).
   • Remove the safety belt anchor.
6. Remove the scrivet and the 3 rear door lower trim panel screws.
Fig 5: Locating Scrivet & Rear Door Lower Trim Panel Screws
Courtesy of FORD MOTOR CO.
CAUTION: Do not pull directly outward on the rear door lower trim panel, as damage will occur.
7. Pull straight up to remove the rear door lower trim panel.
   • Route the shoulder safety belt through the lower rear door trim panel opening.

Upper and lower door trim panels

CAUTION: Insert the rear door lower trim panel tabs first or they can break when installing the rear door lower trim panel.
8. To install, reverse the removal procedure.
