Cowl Panel Grille: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

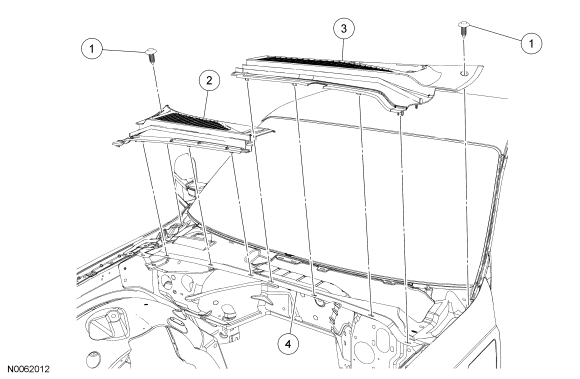

Fig 1: Exploded View Of Cowl Panel Grille
GF0047795Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W713690 Cowl vent panel screw
2 02222 RH cowl vent panel
3 02223 LH cowl vent panel
4 - Cowl
