Removal & Installation

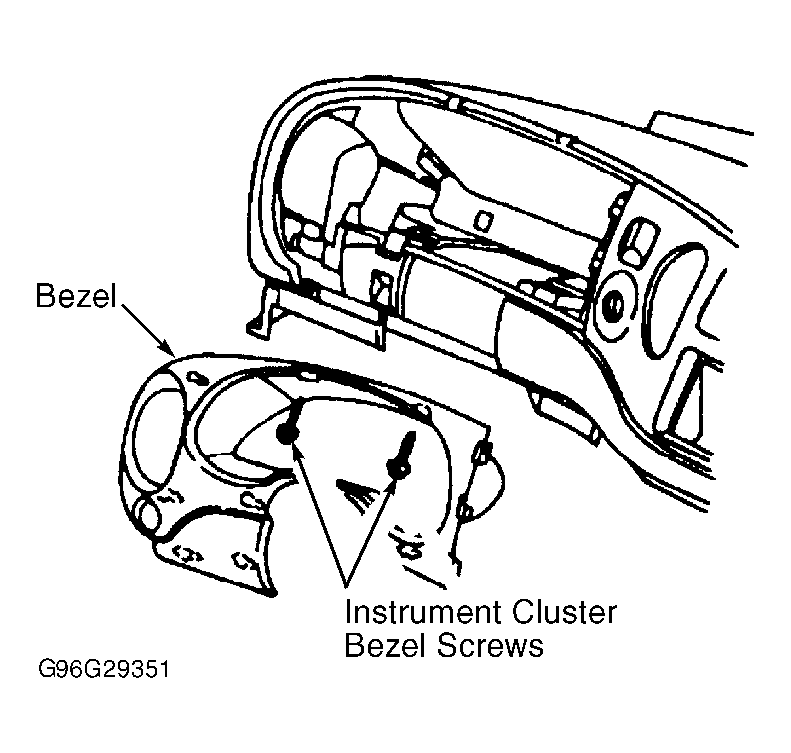

- Disconnect negative battery cable. Wait 2 minutes. Remove headlight switch knob and bezel. Remove 2 screws above cluster lens. See Fig 1. Remove instrument cluster bezel.
- Remove 4 screws retaining instrument cluster. Pull cluster out and disconnect harness connectors. Remove transmission range indicator. Remove instrument cluster. To install, reverse removal procedure.
