Crown Victoria & Grand Marquis

CALIBRATION-TO-VACUUM DIAGRAM REFERENCE

Application/Calibration No.

See

Compressed Natural Gas Vehicles ⁽¹⁾

1-FB1-NG0-505 (YGZ0)

Gasoline Vehicles

1-FB1-GB0-508 (RFR4), 1-FB1-GB0-510 (RFR5), 1-FB1-GH0-508 (NHT4), 1-FB1-GH0-510 (NHT5), 1-FB1-GP0-508 (BXT4), 1-FB1-GP0-510 (BXT5), 1-FB1-GP0-511 (BXT6), 1-FB1-HH0-511 (KPU1), 1-FB1-PB0-506 (RWO2), 1-FB1-PH0-506 (XEO2) & 1-FB1-PP0-506 (OFT2)

Fig 2

⁽¹⁾	Applies to Crown Victoria models only.

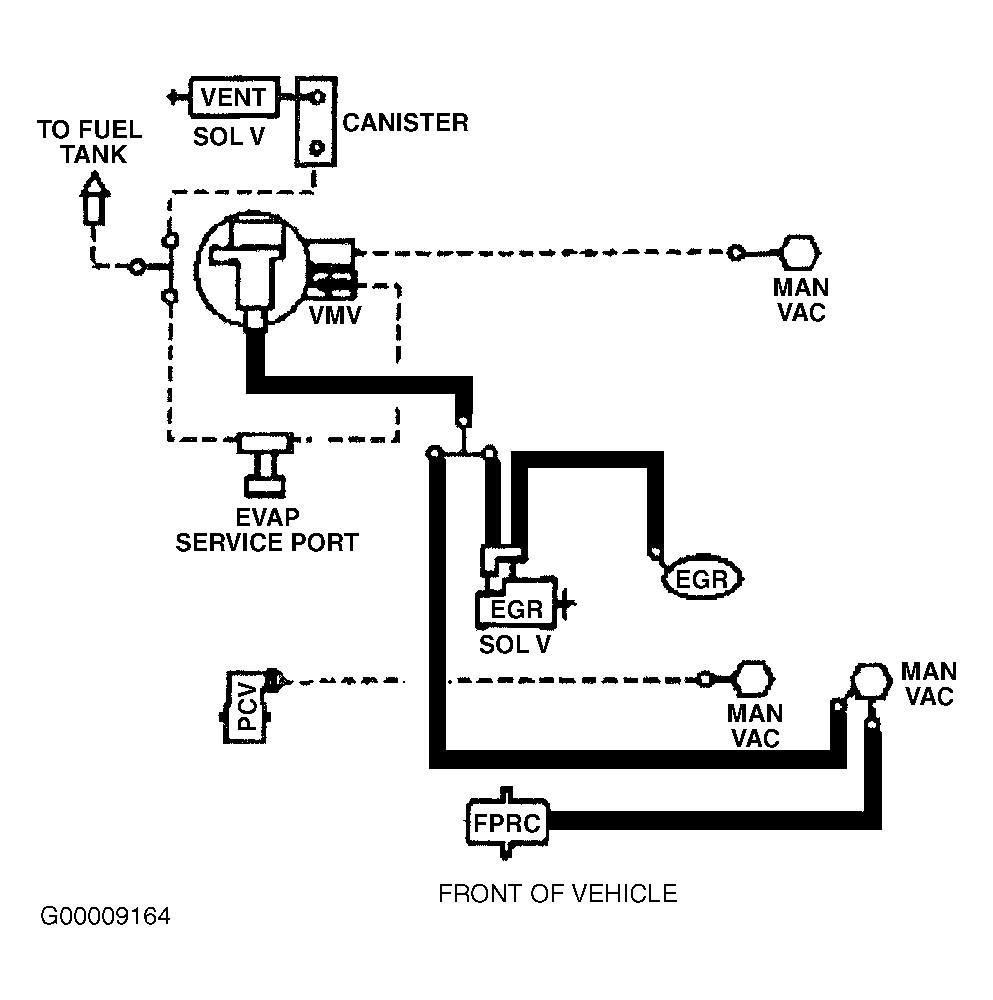

Fig 1: Vacuum Diagram - Crown Victoria (Natural Gas Vehicles)

Courtesy of FORD MOTOR CO.

Fig 2: Vacuum Diagram - Crown Victoria & Grand Marquis (Gasoline Vehicles)

Courtesy of FORD MOTOR CO.
