Shock Absorber: Removal

WARNING: All vehicles are equipped with gas pressurized shock absorbers which will extend unassisted. Do not apply heat or flame to the shock absorbers during removal or component servicing. Failure to follow these instructions can result in personal injury.

CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation becomes necessary. If substitution is necessary, the part must be of the same finish and property class. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

CAUTION: When using a hoist that lifts the vehicle by the frame, install new shock absorbers one at a time.

Open the luggage compartment lid. Position the carpet out of the way.
Remove and discard the retaining nut, washer and insulator assembly.

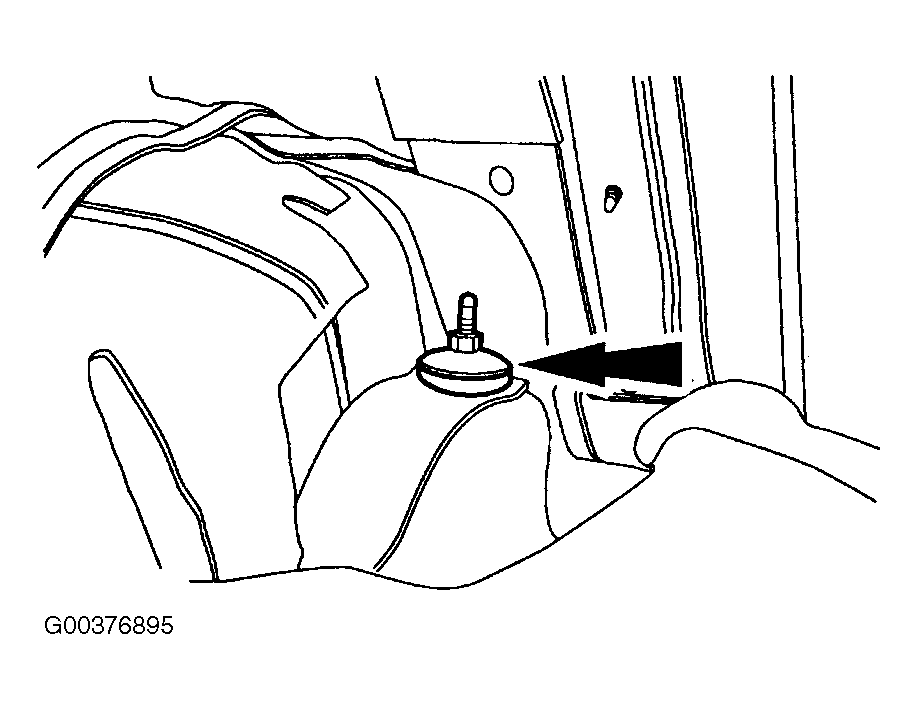

Fig 1: Identifying Upper Shock Absorber Nut
Courtesy of FORD MOTOR CO.
Raise the vehicle.
Remove the shock absorber (18125).
1. Remove and discard the bolt and nut.
2. Remove the shock absorber.

  Fig 2: Removing Lower Shock Absorber Nut & Bolt
  Courtesy of FORD MOTOR CO.
