Bushing - Axle Housing To Upper Arm: Removal

CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation becomes necessary. If substitution is necessary, the part must be of the same finish and property class. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

Remove the upper arm and bushing (5500). For additional information, refer to ARM - UPPER .
Using the special tools, remove the bushing.

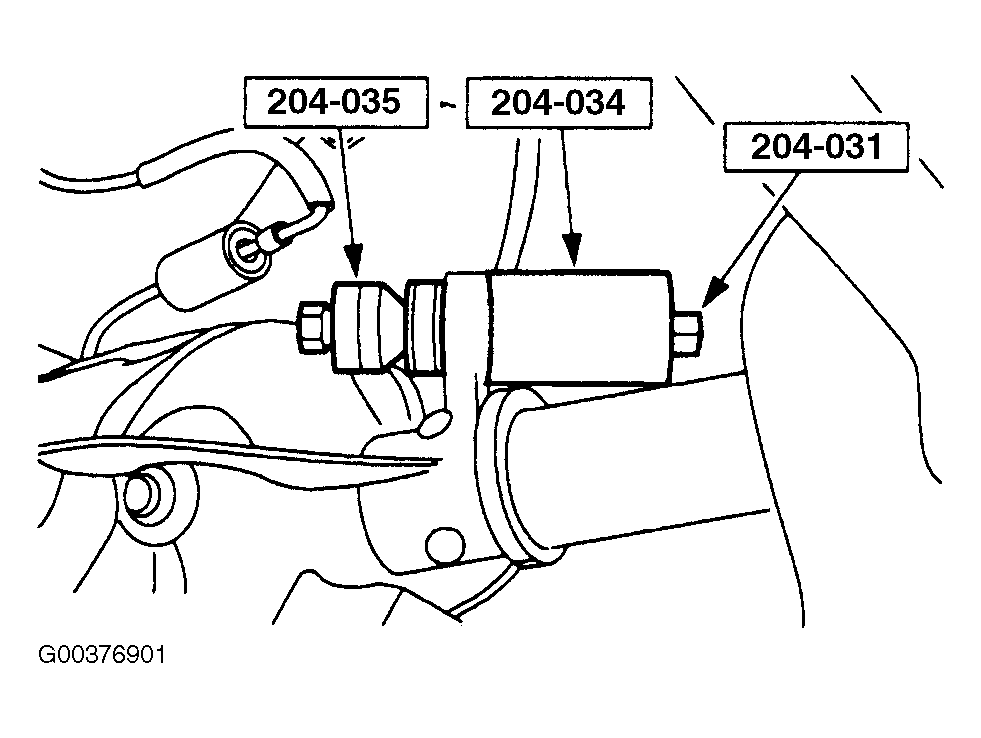

Fig 1: Removing Bushing
Courtesy of FORD MOTOR CO.
