Bushing - Axle Housing To Upper Arm: Installation

  1. Using the special tools, install the bushing.

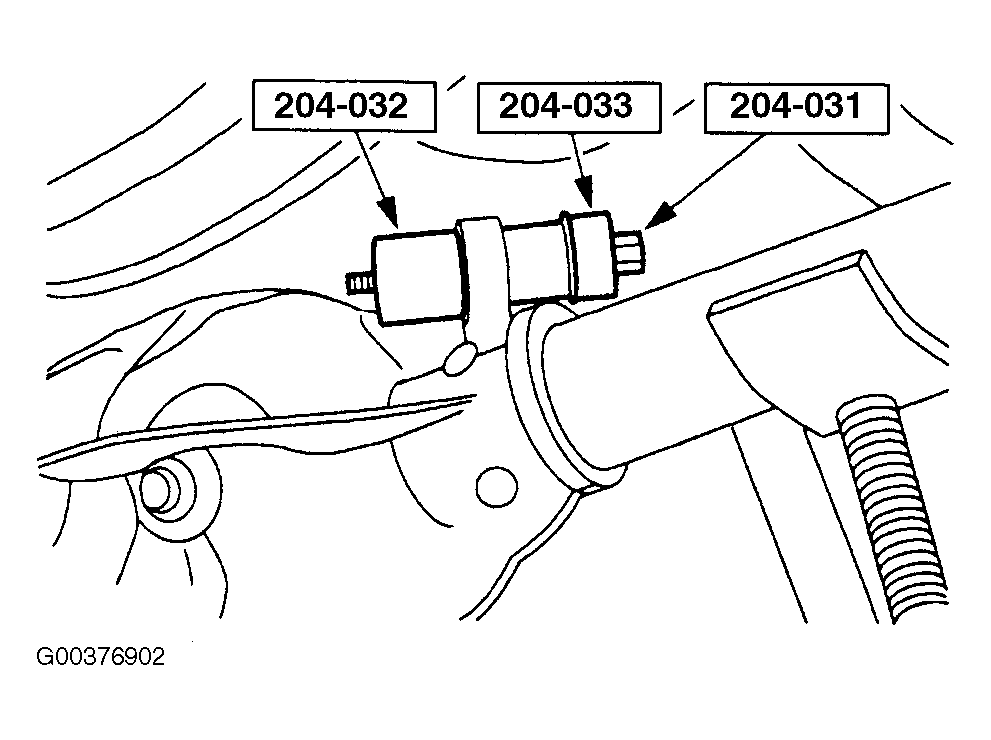

    Fig 1: Installing Bushing
    G00376902Courtesy of FORD MOTOR CO.
  2. Using a suitable calibrated micrometer, measure the bushing as shown. If not within specifications, adjust as necessary.
    Fig 2: Measuring Bushing
    G00376903Courtesy of FORD MOTOR CO.
  3. Install the upper arm and bushing. For additional information, refer to ARM - UPPER .
