CIII Steering Pump
The CIII power steering pump has the following features:
- It is a belt-driven, vane-type pump.

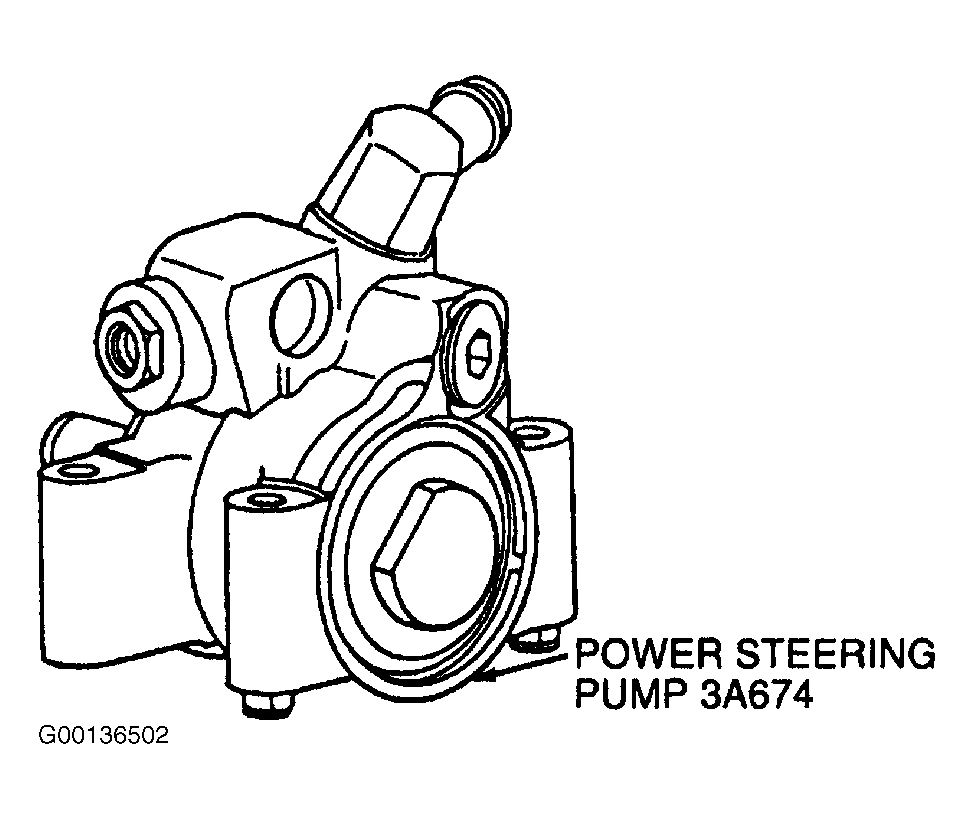

- It is mounted directly to the engine block by four retaining bolts. See Fig 1 .
- The pump design incorporates a pump pressure fitting which allows the power steering pressure hose to swivel. This is normal and does not indicate a loose fitting. See Fig 1 .
- The power steering pump auxiliary reservoir for the power steering oil is mounted to the left hand ignition coil bracket. See Fig 1 .
- An identification tag attached to the power steering pump indicates the model number and bar code. Refer to these when service parts are required. See .
NOTE:
The power steering pump is serviced as an assembly. If any service is required the entire power steering pump assembly must be replaced.
The power steering pump service identification tag identifies the power steering pump for service purposes. The identification tag is located on the reservoir body.
