Valve Cover - RH: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S) SPECIFICATIONS

Courtesy of FORD MOTOR CO.	Engine Support Bar, Heavy Duty 303-F070
Courtesy of FORD MOTOR CO.	Support Hook 303-F071
Courtesy of FORD MOTOR CO.	Engine Support Bracket 303-639

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-
Silicone Gasket and Sealant TA-30 or equivalent	WSE-M4G323-A4

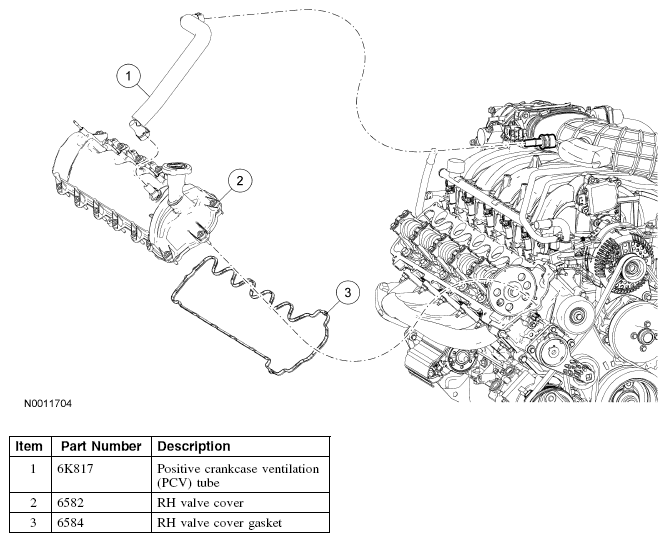

Fig 1: Identifying Valve Cover - RH Components Location

Courtesy of FORD MOTOR CO.
