Instrument Cluster
CAUTION:
Instrument cluster must be kept upright to avoid silicone liquid leaking from gauges.
Removal & Installation

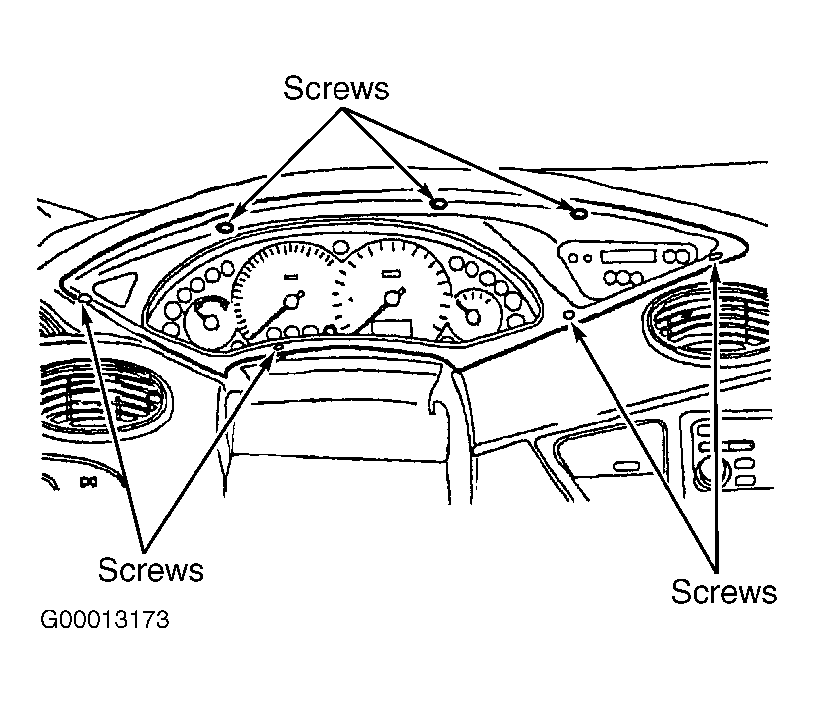

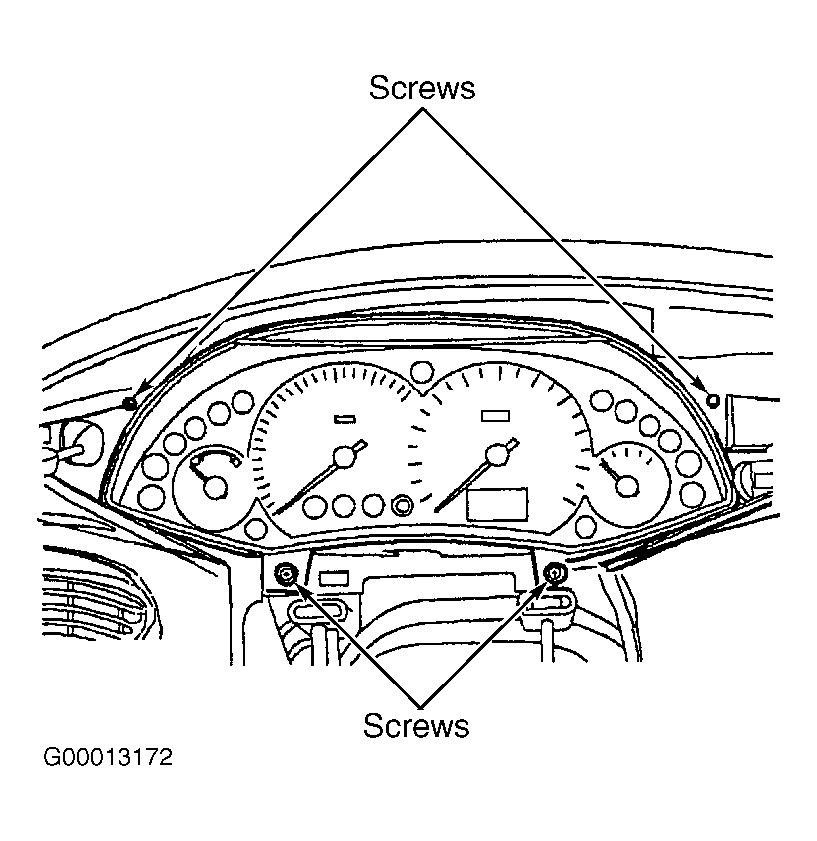

- Remove 7 screws located around instrument cluster bezel. See Fig 1. Pull out on bezel and disconnect luggage compartment release switch electrical connector. Remove bezel. Remove 4 screws securing instrument cluster to dashboard. See Fig 2. Remove instrument cluster and remove wiring harness connector locking tang and disconnect connector from instrument panel.
- To install, reverse removal procedure.
