Escort & ZX2

CALIBRATION-TO-VACUUM DIAGRAM REFERENCE

Application/Calibration No.		See
2.0L DOHC
1-AJ1-AZ0-505 (JZB1), 1-AJ1-AZ0-506 (JZB2), 1-AJ2-AZ0-505 (LXQ1) & 1-AJ2-AZ0-506 (LXQ2)		Fig 1
2.0L SOHC
1-AJI-AS0-500 (HTN0)		Fig 2

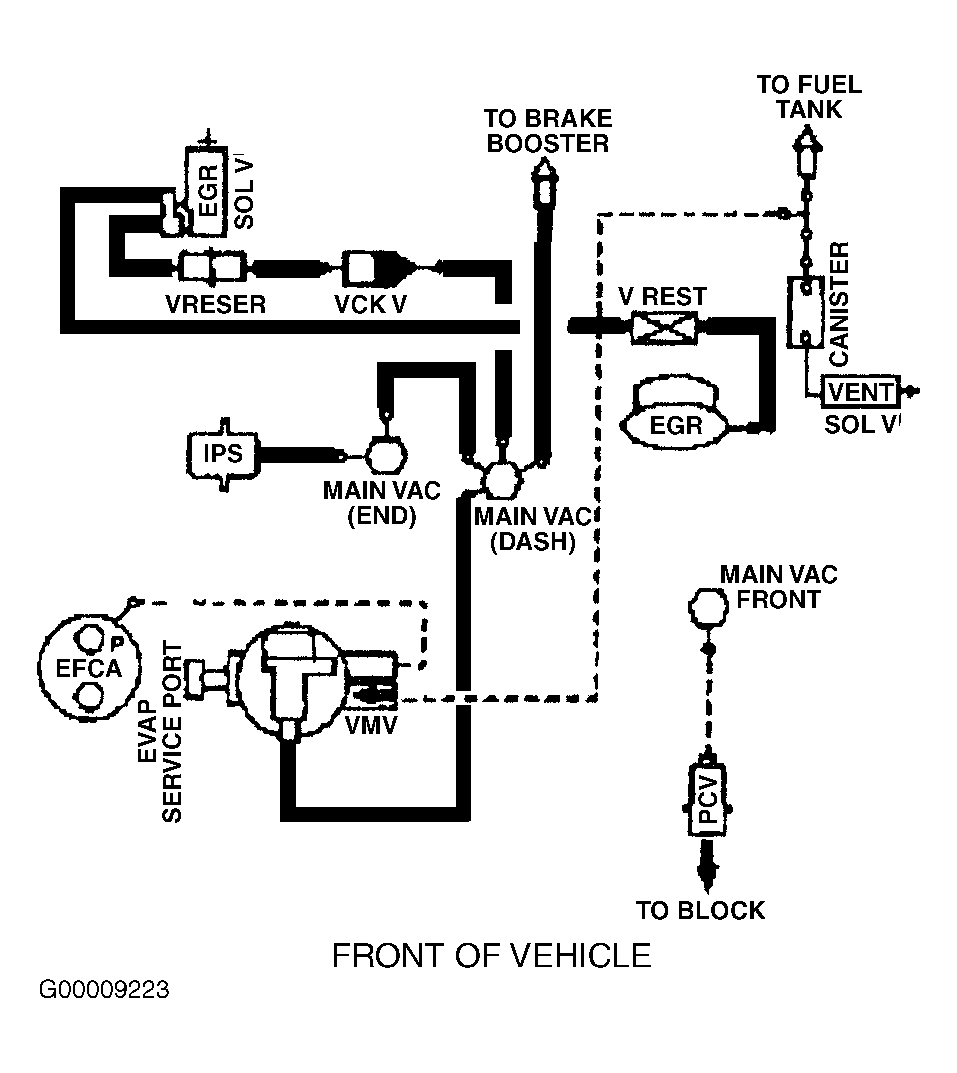

Fig 1: Vacuum Diagram - Escort & Escort ZX2 (2.0L DOHC)

Courtesy of FORD MOTOR CO.

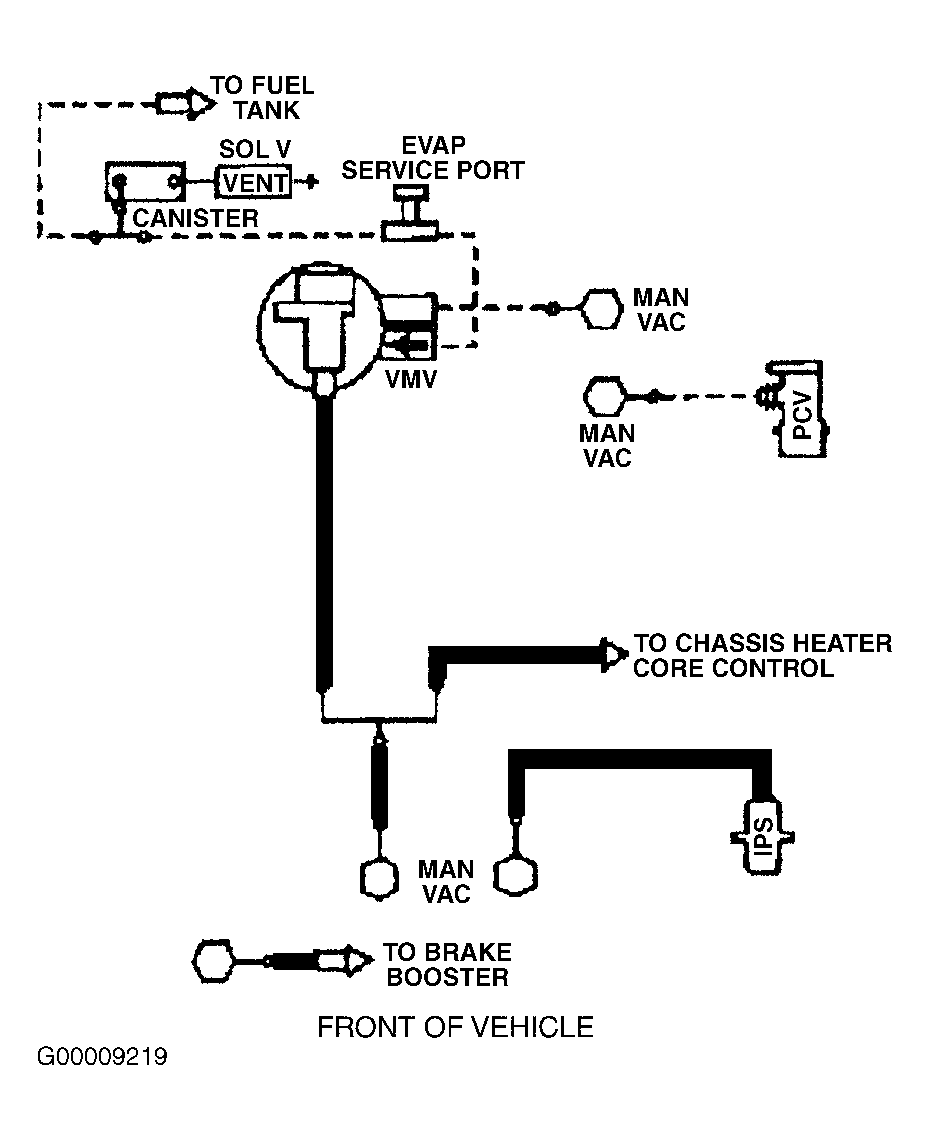

Fig 2: Vacuum Diagram - Escort & Escort ZX2 (2.0L SOHC)

Courtesy of FORD MOTOR CO.
