Crankshaft Rear Seal: Removal

Vehicles with manual transaxle

1. Remove the clutch. For additional information, refer to CLUTCHES article .

   Vehicles with automatic transaxle

2. Remove the automatic transaxle. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .

   All vehicles

3. Using the special tool, remove the flywheel/drive plate.

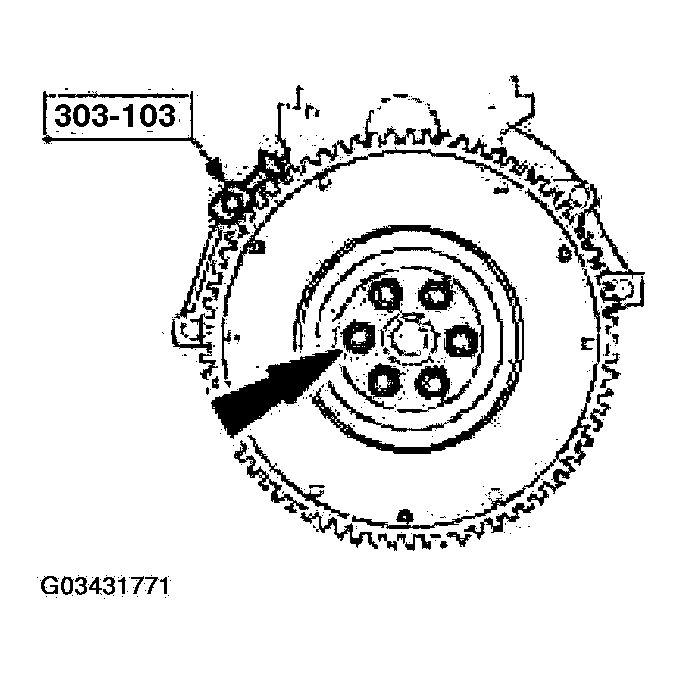

   Fig 1: Removing Flywheel/Drive Plate

   Courtesy of FORD MOTOR CO.
4. Using the special tool, remove the oil seal.

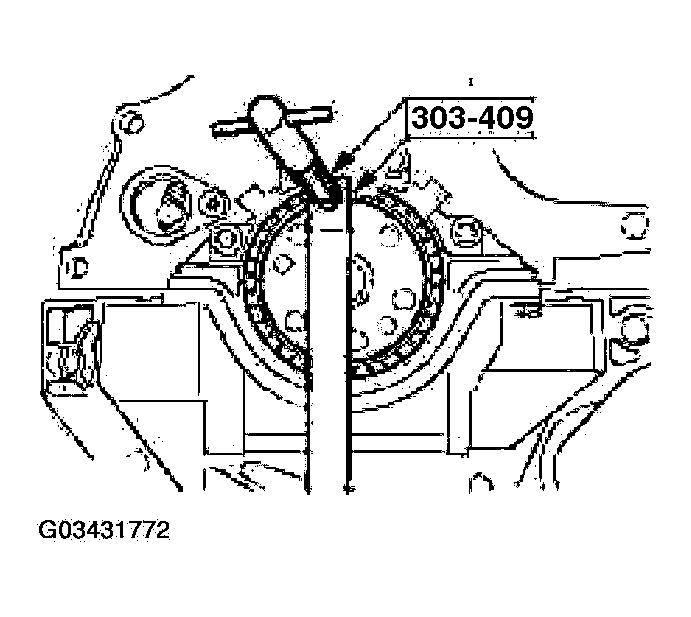

   Fig 2: Removing Oil Seal

   Courtesy of FORD MOTOR CO.
