Crankshaft Rear Seal: Installation

All vehicles

1. Using the special tool, install the oil seal.
   • Install three flywheel bolts.
     Fig 1: Installing Oil Seal

     Courtesy of FORD MOTOR CO.
NOTE: Remove any traces of thread-locking compound from the threaded bores on the crankshaft.

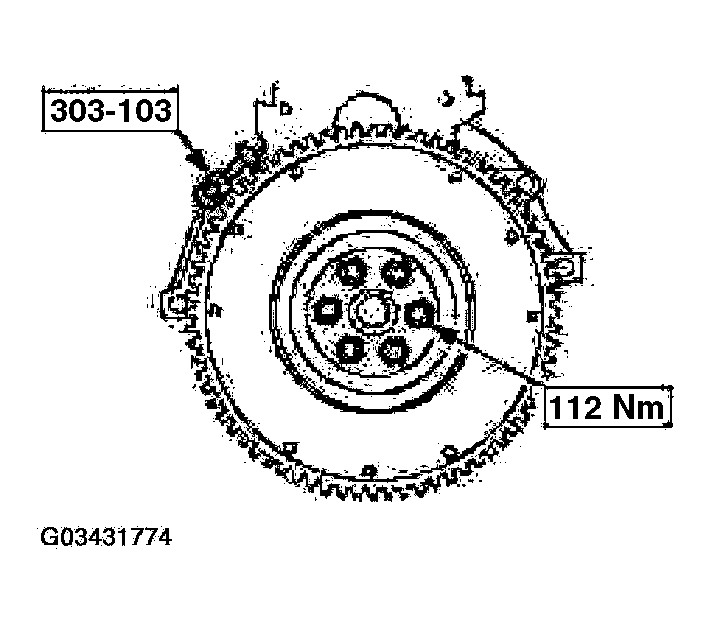

Fig 2: Installing Flywheel/Drive Plate
Courtesy of FORD MOTOR CO.
2. Using the special tool, install the flywheel/drive plate.

   Vehicles with manual transaxle

3. Install the clutch. For additional information, refer to CLUTCHES article .

   Vehicles with automatic transaxle

4. Install the automatic transaxle. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
