Camshaft Seal: Removal

  1. Remove the timing belt. For additional information, refer to TIMING BELT .
  2. Remove the camshaft pulleys.
    • Remove the bolts.
  3. Remove camshaft bearing caps numbers 0 and 5.
    • Remove the camshaft oil seals.

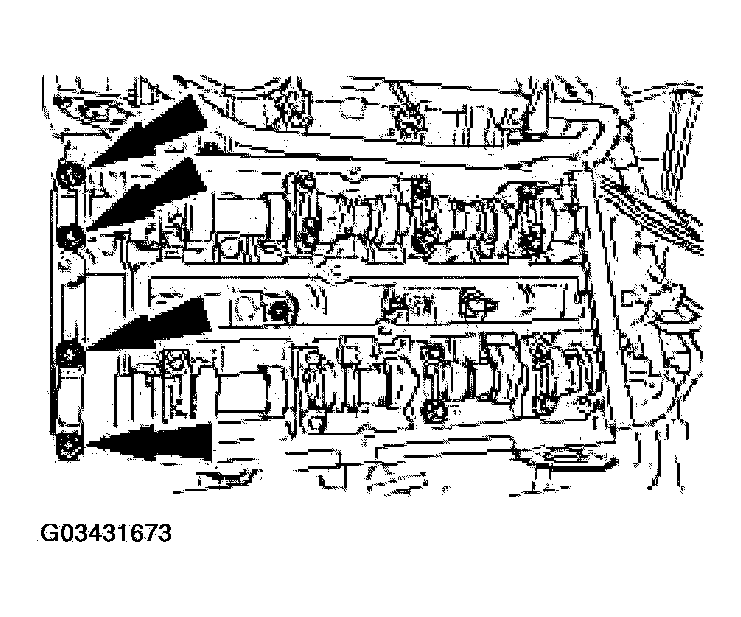

      Fig 1: Removing Camshaft Bearing Caps
      G03431673Courtesy of FORD MOTOR CO.
