Removal (Focus)

  1. Drain the cooling system.
  2. Disconnect the coolant hoses and detach the thermostat housing.

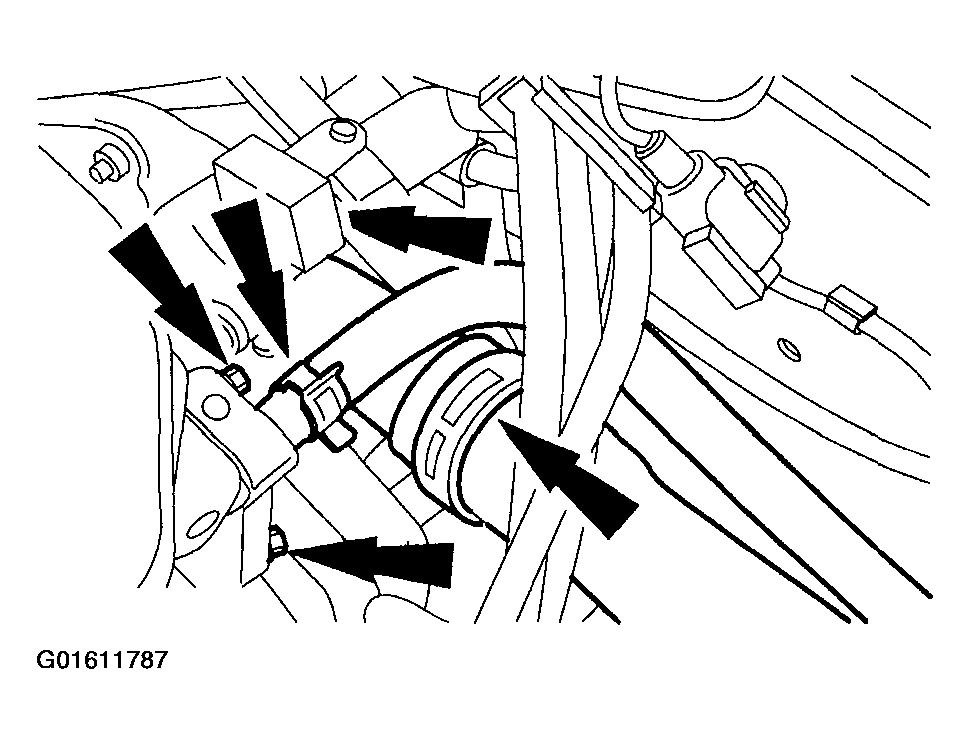

    Fig 1: Disconnecting Coolant Hoses
    G01611787Courtesy of FORD MOTOR CO.
  3. Remove the thermostat.

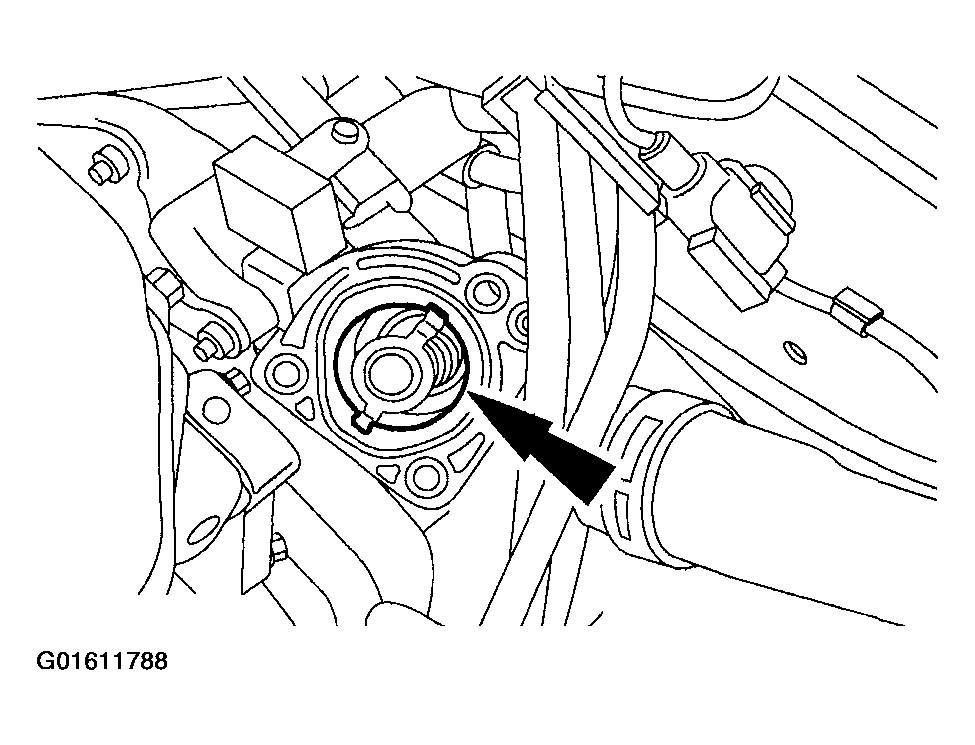

    Fig 2: Removing Thermostat
    G01611788Courtesy of FORD MOTOR CO.
  4. Remove and discard the O-ring seals.

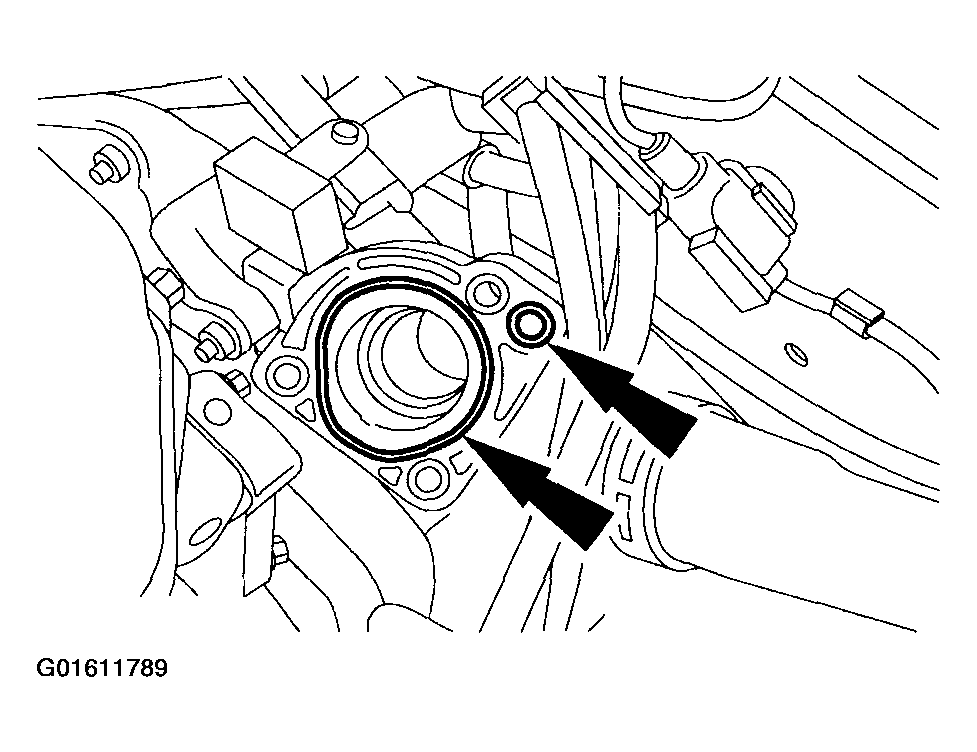

    Fig 3: Removing And Discard O-Ring Seals
    G01611789Courtesy of FORD MOTOR CO.
