Radiator - 2.0L Zetec-E (Zetec) & 2.0L SPI: Removal

All Vehicles

1. Remove the cooling fan motor and shroud. For additional information, refer to COOLING FAN MOTOR AND SHROUD .
2. Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
3. Remove the four pin-type retainers from the radiator air deflector.
   Fig 1: Removing Four Pin-Type Retainers From Radiator Air Deflector

   Courtesy of FORD MOTOR CO.
4. Lower the vehicle.
5. Disconnect the upper radiator hose.
   Fig 2: Disconnecting Upper Radiator Hose

   Courtesy of FORD MOTOR CO.
6. Raise the vehicle.

   Vehicles with air conditioning

7. Support the condenser and transaxle oil cooler (if equipped).

   All Vehicles

8. Disconnect the radiator upper coolant hose.

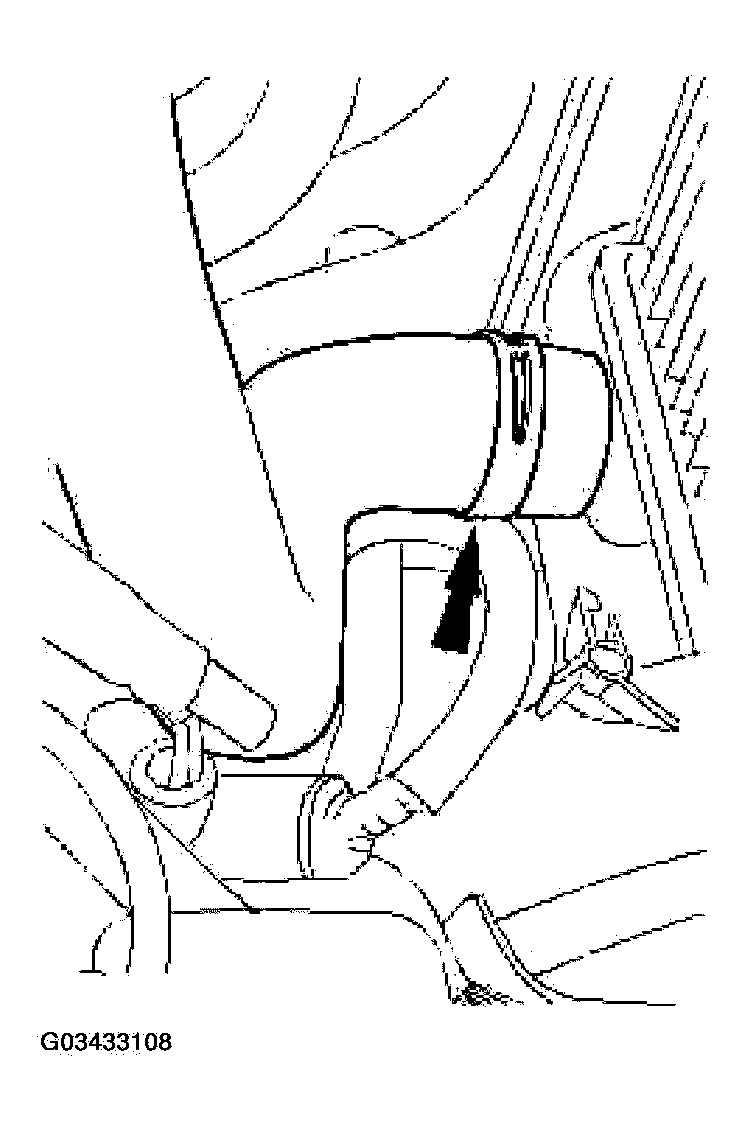

   Fig 3: Disconnecting Radiator Upper Coolant Hose

   Courtesy of FORD MOTOR CO.
9. Disconnect the radiator lower coolant hoses.

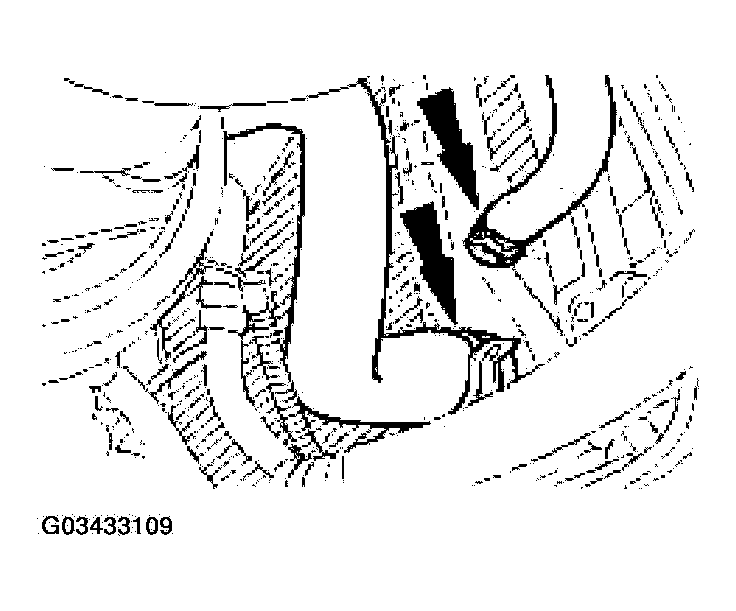

   Fig 4: Disconnecting Radiator Lower Coolant Hoses

   Courtesy of FORD MOTOR CO.
10. Disconnect the horn electrical connector.

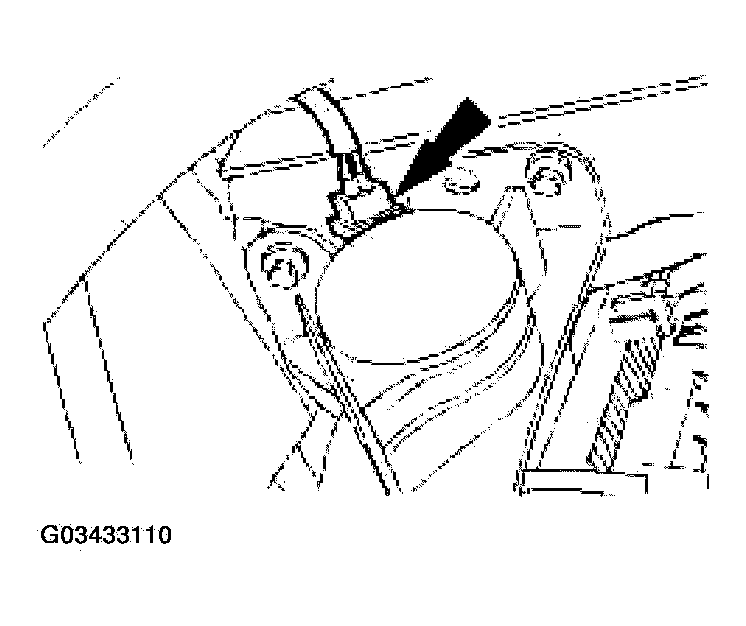

    Fig 5: Disconnecting Horn Electrical Connector

    Courtesy of FORD MOTOR CO.
11. Remove the radiator support bracket bolts.

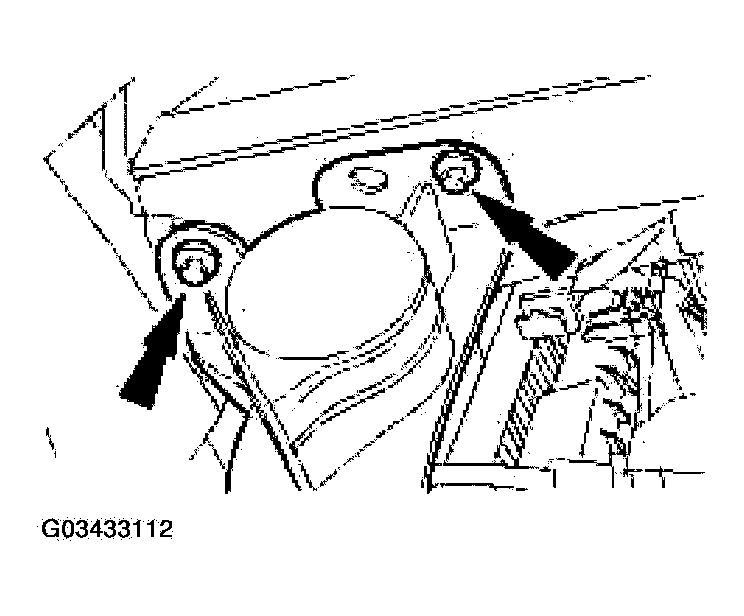

    Fig 6: Removing Radiator Support Bracket Bolts

    Courtesy of FORD MOTOR CO.
12. Remove the radiator support bracket.
    Fig 7: Removing Radiator Support Bracket

    Courtesy of FORD MOTOR CO.
13. Remove the radiator.

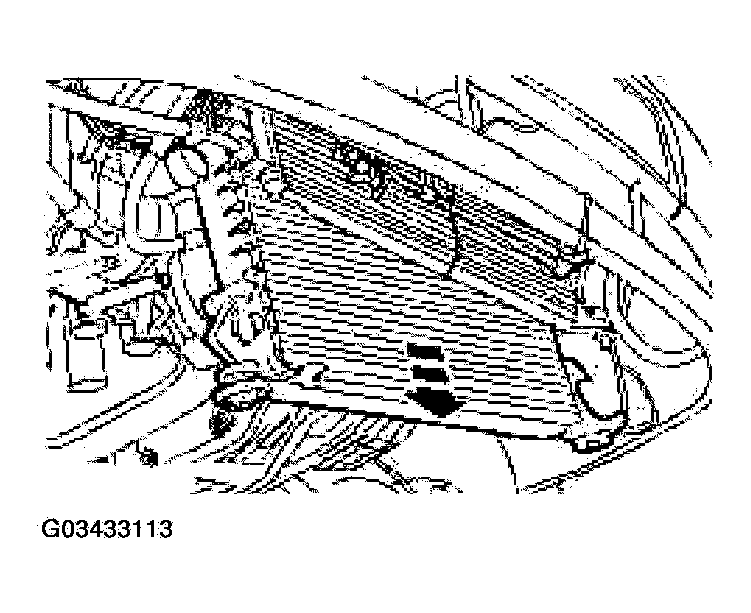

    Fig 8: Removing Radiator

    Courtesy of FORD MOTOR CO.
