2.0L Zetec-E Engines With Air Conditioning

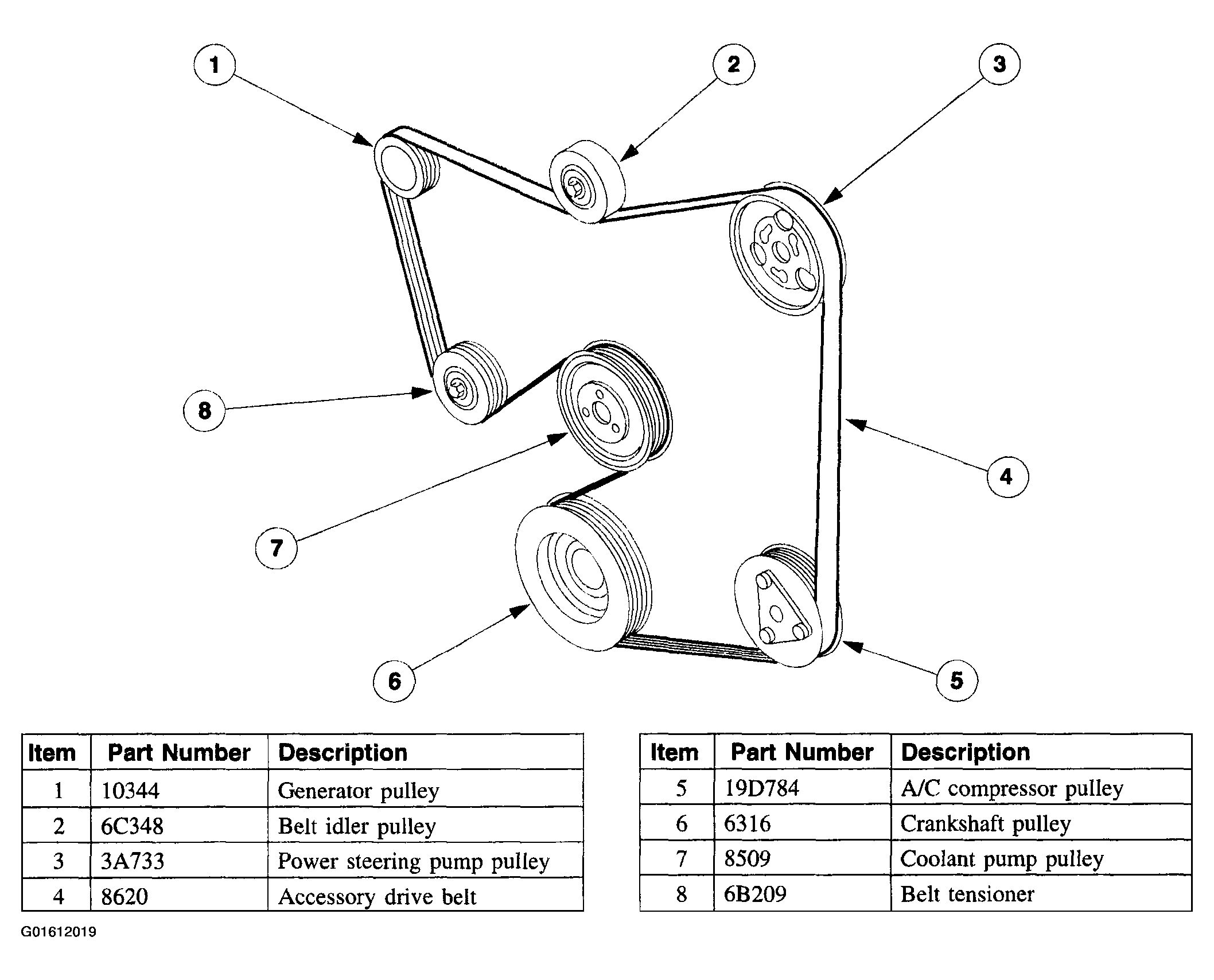

Fig 1: Identifying Accessory Driver Components - 2.0L Zetec-E Engines With Air Conditioning

G01612019

Courtesy of FORD MOTOR CO.
