Component Locations
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2003 Mazda B4000, 2003 Mazda B3000, 2003 Mazda B2300, 2002 Mazda B4000, and 2002 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

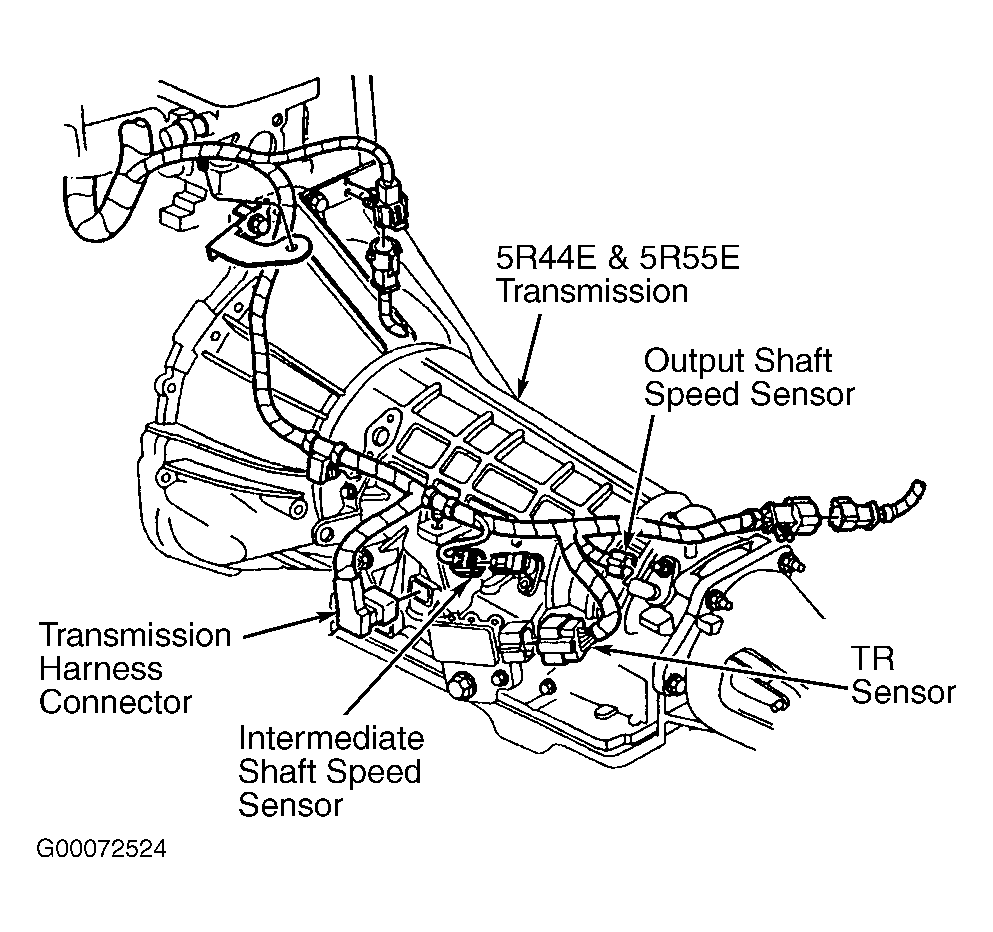

For illustrated view of transmission component locations, see Figure.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Air Conditioning Clutch Switch | Right Rear Of Engine Compartment, Near Blower Motor |
| Brake Pedal Position Switch | On Top Of Brake Support |
| Intake Air Temperature Sensor | On Air Cleaner Outlet Tube |
| Mass Airflow Sensor | On Air Intake Assembly |
| Powertrain Control Module | At Center Rear Of Engine Compartment, On Firewall |
| Throttle Position Sensor | On Throttle Body |
