Trim Panel - Running Boards: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Left side on SuperCab shown, regular cab, Crew Cab and Excursion are similar. The right side is symmetrically opposite.
    NOTE: Be sure to disconnect the running board lights electrical connector, if equipped.
  1. Remove the running board.
    1. Remove the bolts.
    2. Remove the running board.

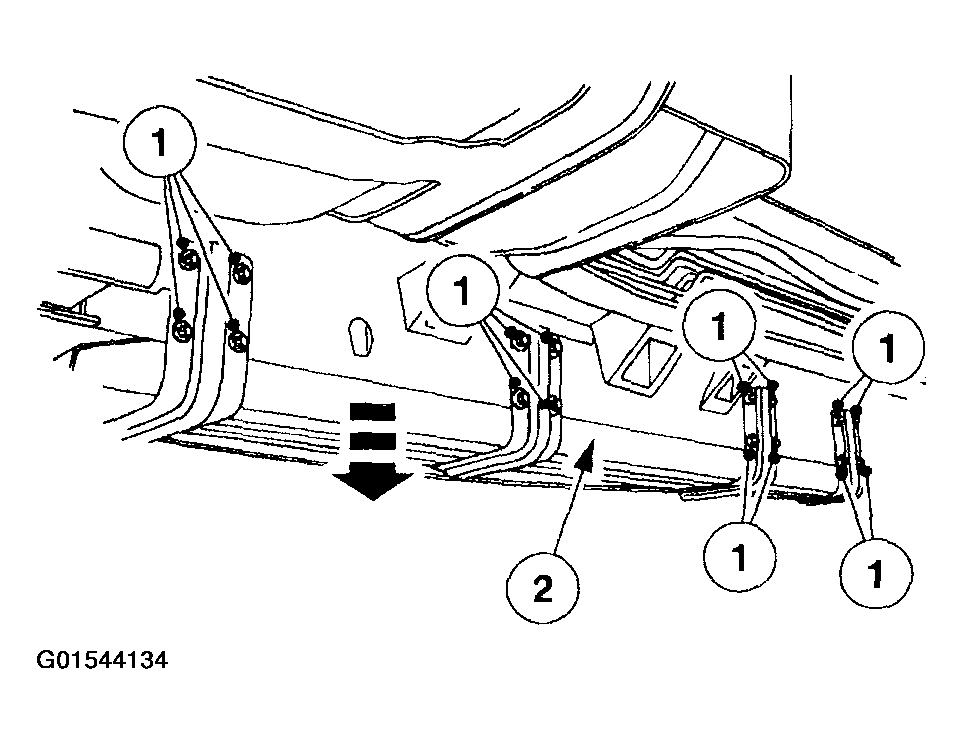

      Fig 1: Removing Running Board
      G01544134Courtesy of FORD MOTOR CO.
