Section 9 (Front Suspension - 4WD Torsion Bar - Expedition, F150 Pickup & Navigator): Description
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 Lincoln Navigator, 2001 Ford Pickup, 2001 Ford Expedition, 2000 Lincoln Navigator, and 2000 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

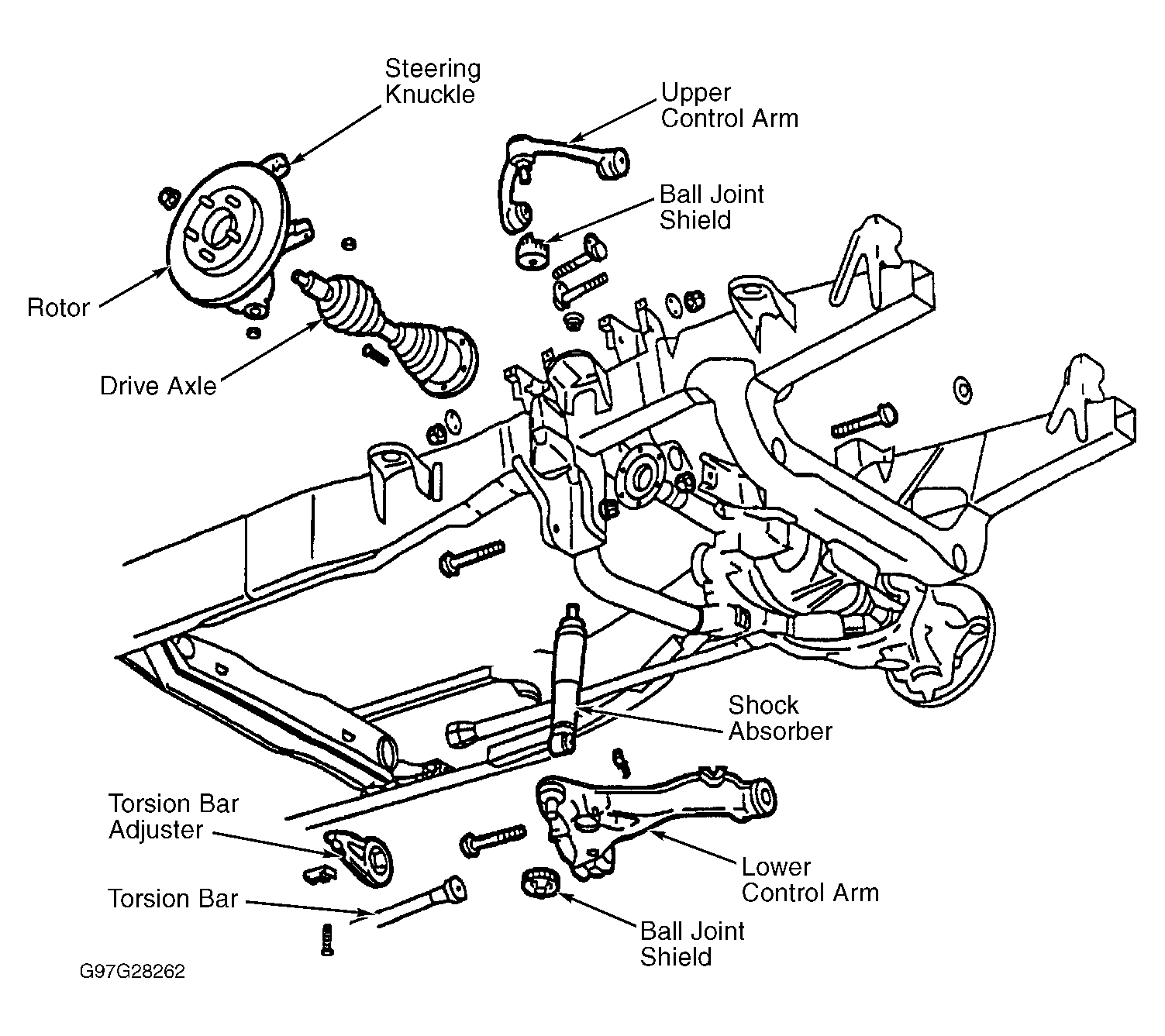

Front suspension consists of upper and lower control arms, torsion bars, crossmember support, steering knuckles, shock absorbers, stabilizer bar, stabilizer bar links, wheel hub and front axle bumper. See Fig 1. Torsion bars are not interchangeable form left to right. Each torsion bar end is stamped with an "R" or an "L" for identification. Upper and lower ball joints and bushings are an integral part of the upper and lower control arms, and are replaced only as an assemblies.
