Removal (CIII Pump)

Remove the pump pulley. See POWER STEERING PUMP PULLEY
Loosen the clamp and disconnect the power steering reservoir-to-pump hose. See Fig 1.
Loosen the routing bracket attaching nut. See Fig 2.

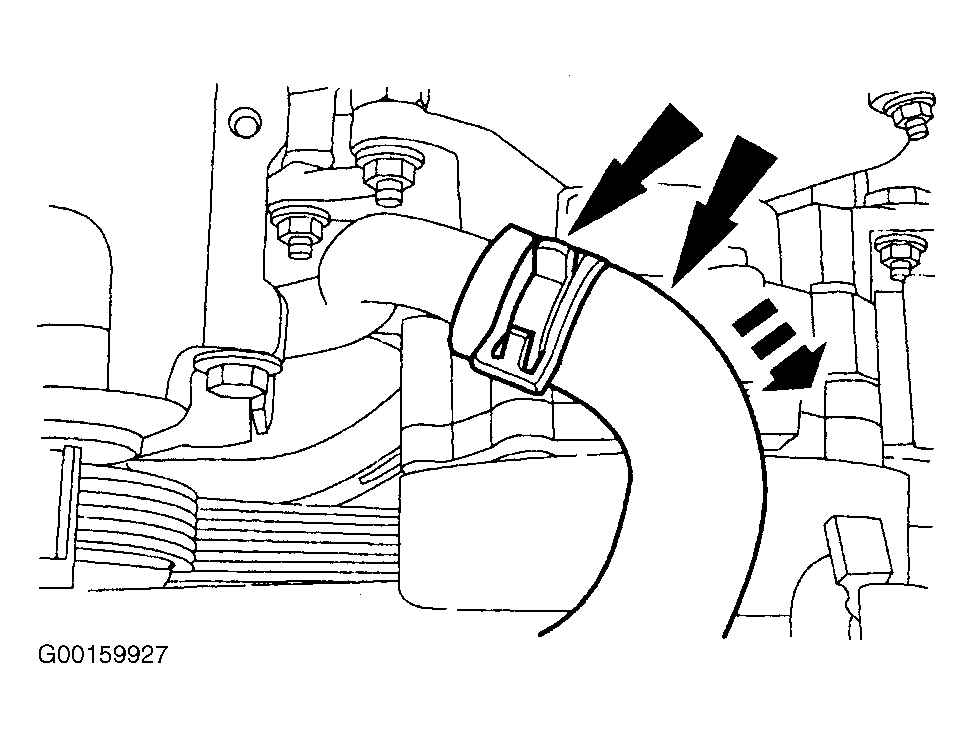

Fig 1: Disconnecting Power Steering Pump Reservoir Return Hose (CIII Pump)
Courtesy of FORD MOTOR CO.

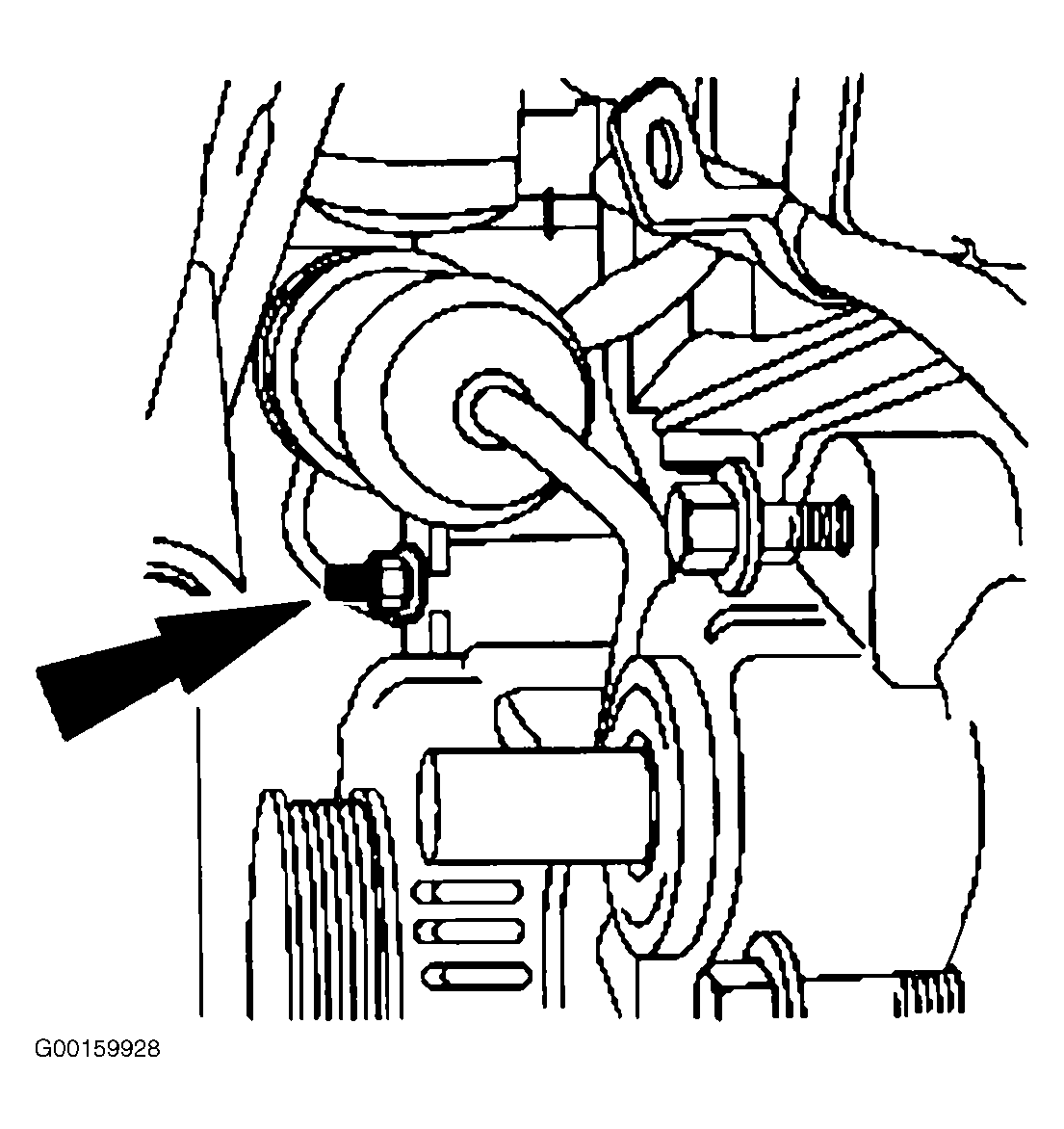

Fig 2: Removing Power Steering Pump Bracket Attaching Nut (CIII Pump)
Courtesy of FORD MOTOR CO.
Loosen the fitting and disconnect the power steering pressure hose. See Fig 3.

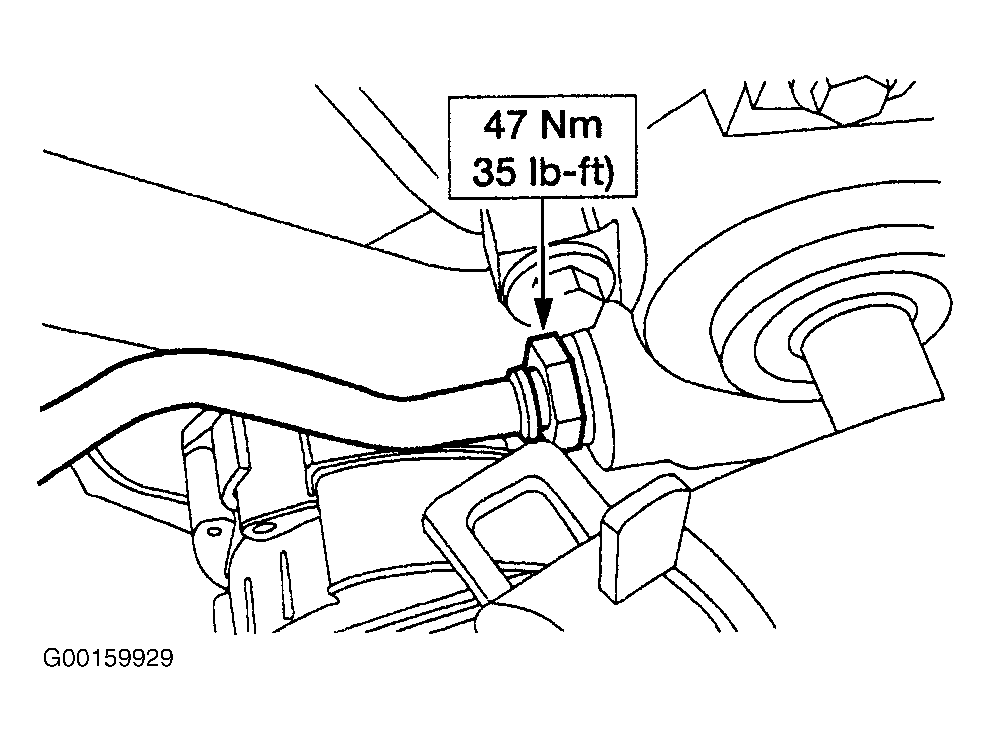

Fig 3: Disconnecting Power Steering Pressure Line (CIII Pump)
Courtesy of FORD MOTOR CO.
Remove the bolts and the power steering pump. See Fig 4.
Connect power steering pressure hose fitting to pump. See HOSES .
To install, reverse the removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
Fill and leak check the system. See SYSTEM FILL under LUBRICATION.

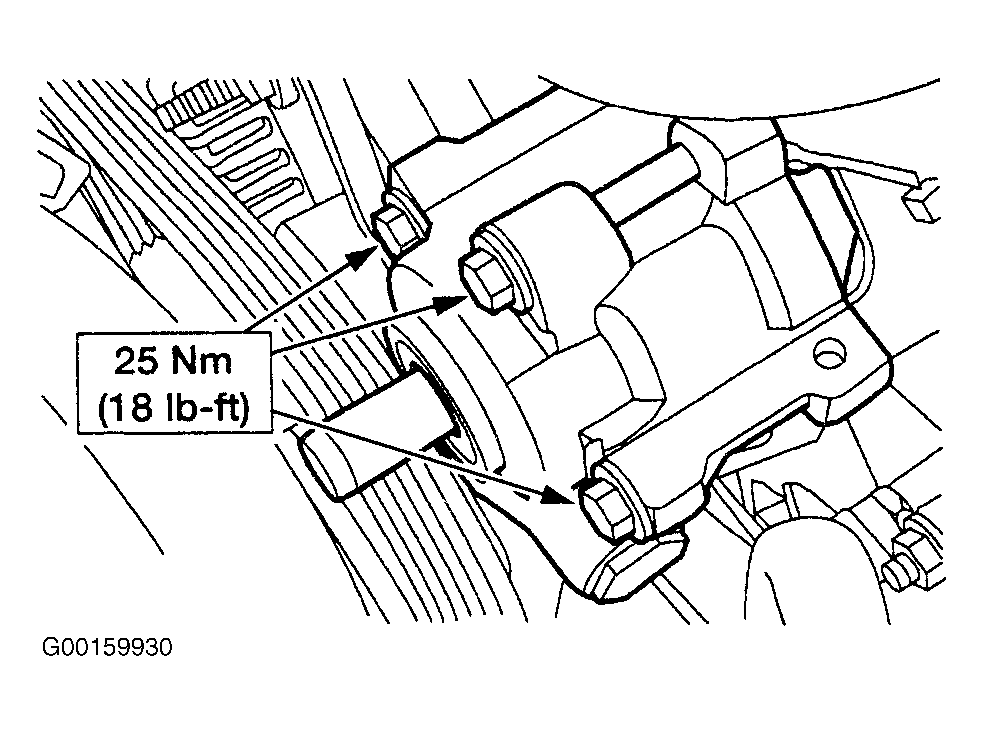

Fig 4: Removing Power Steering Pump Mounting Bolts (CIII Pump)

Courtesy of FORD MOTOR CO.
