Removal (Upper Intake Manifold: 2000 Model Year)

Disconnect the battery ground cable. Remove the air cleaner assembly and the air cleaner outlet tube.
Partially drain the engine coolant system.

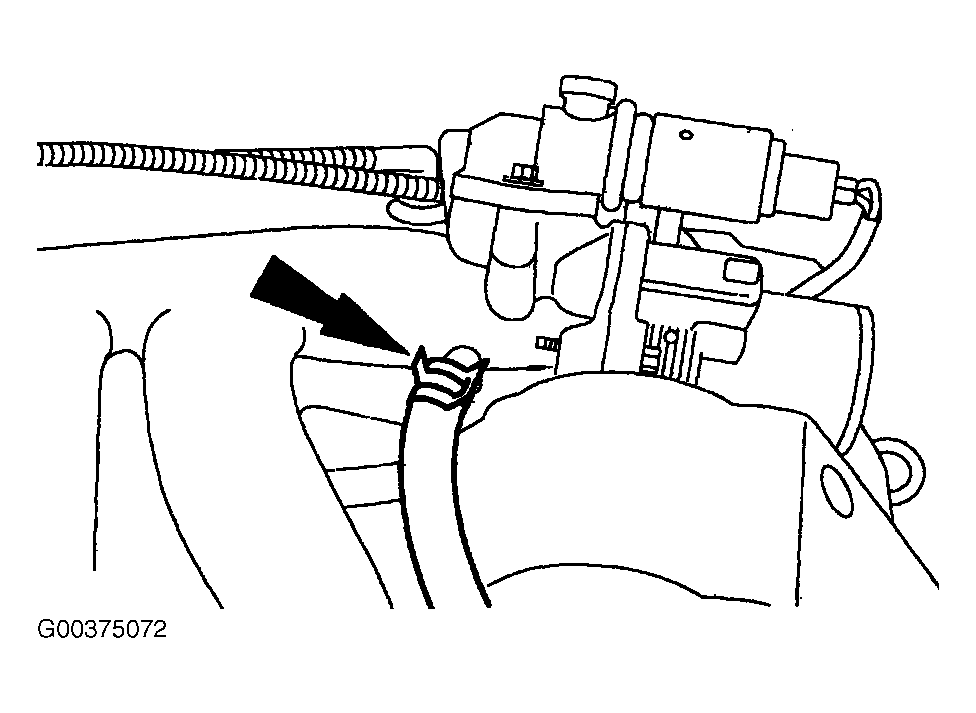

Disconnect the intake throttle body heater hose. See Fig 1.

Fig 1: Locating Intake Throttle Body Heater Hose
Courtesy of FORD MOTOR CO.

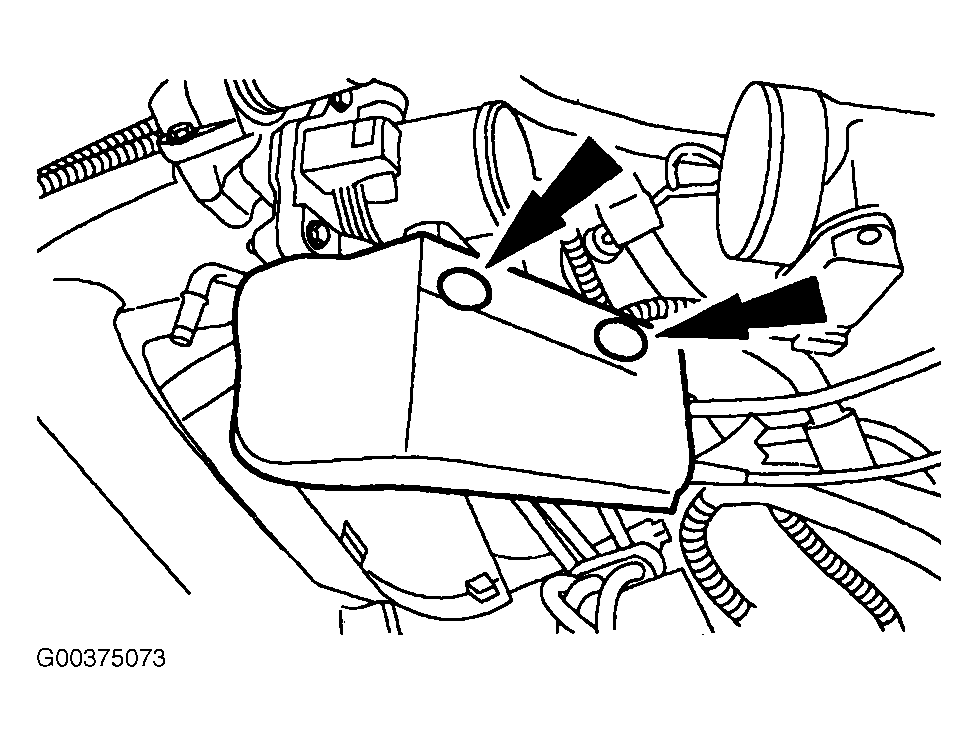

Remove the pin-type retainers and remove the snow shield. See Fig 2.

Fig 2: Locating Snow Shield
Courtesy of FORD MOTOR CO.

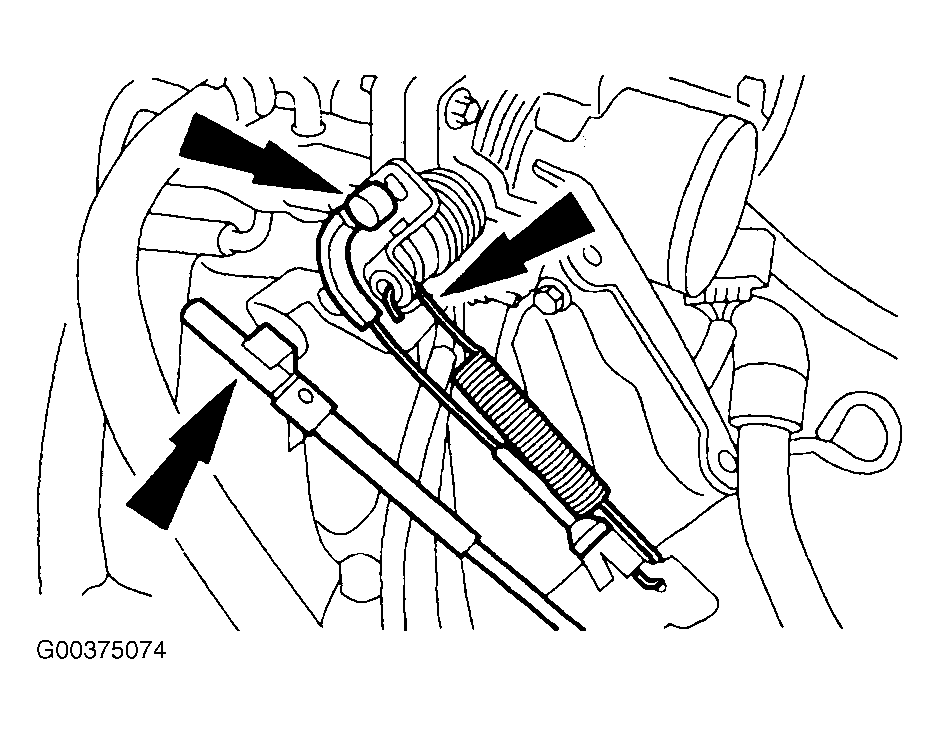

Disconnect the accelerator cable, speed control actuator cable and the throttle return spring from the throttle body. See Fig 3.

Fig 3: Locating Accelerator Cable & Throttle Body Return Spring
Courtesy of FORD MOTOR CO.

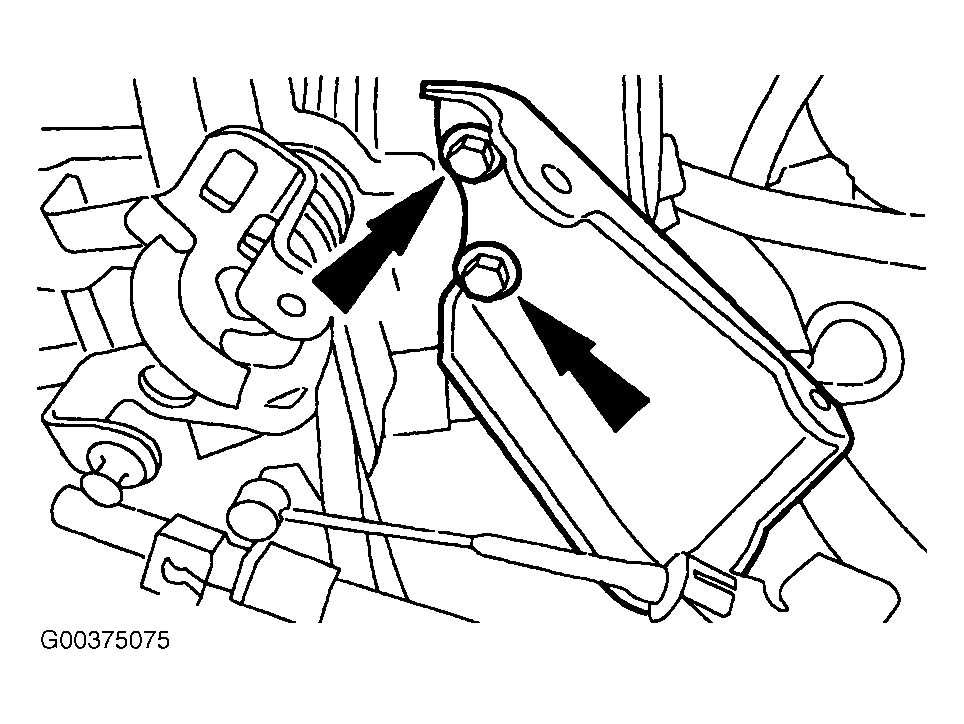

Position the accelerator cable bracket aside. Remove the bolts. See Fig 4.

Fig 4: Locating Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
Disconnect the vacuum hose. Disconnect the evaporative emissions return tube. See Fig 5.

Fig 5: Locating EVAP Emission Return Tube & Vacuum Hose
Courtesy of FORD MOTOR CO.

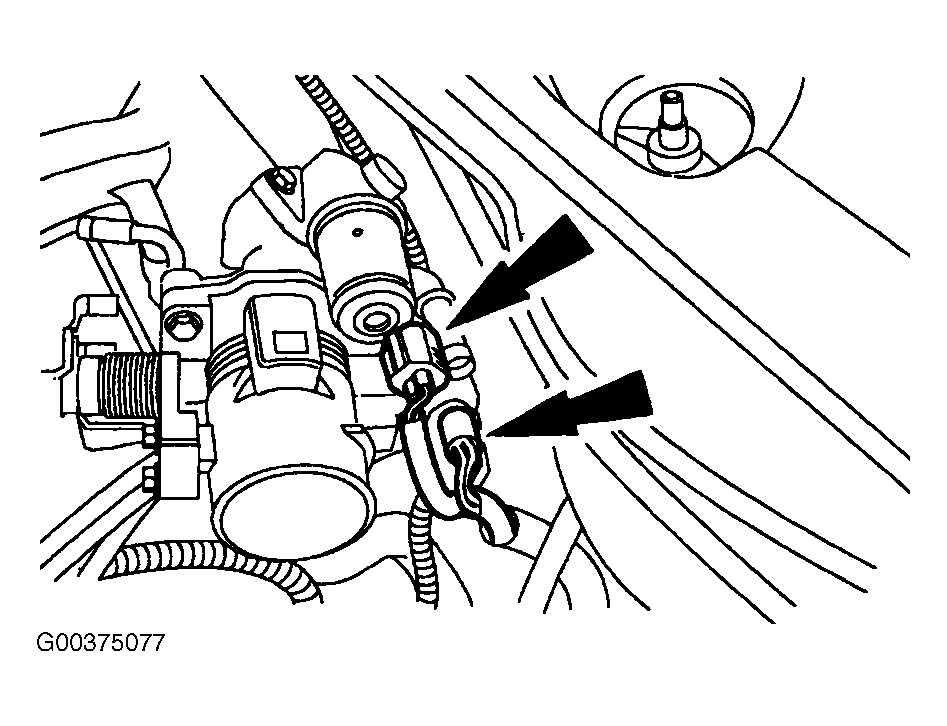

Disconnect the idle air control (IAC). Disconnect the throttle position (TP) sensor. See Fig 6.

Fig 6: Locating TPS & IAC Connectors
Courtesy of FORD MOTOR CO.

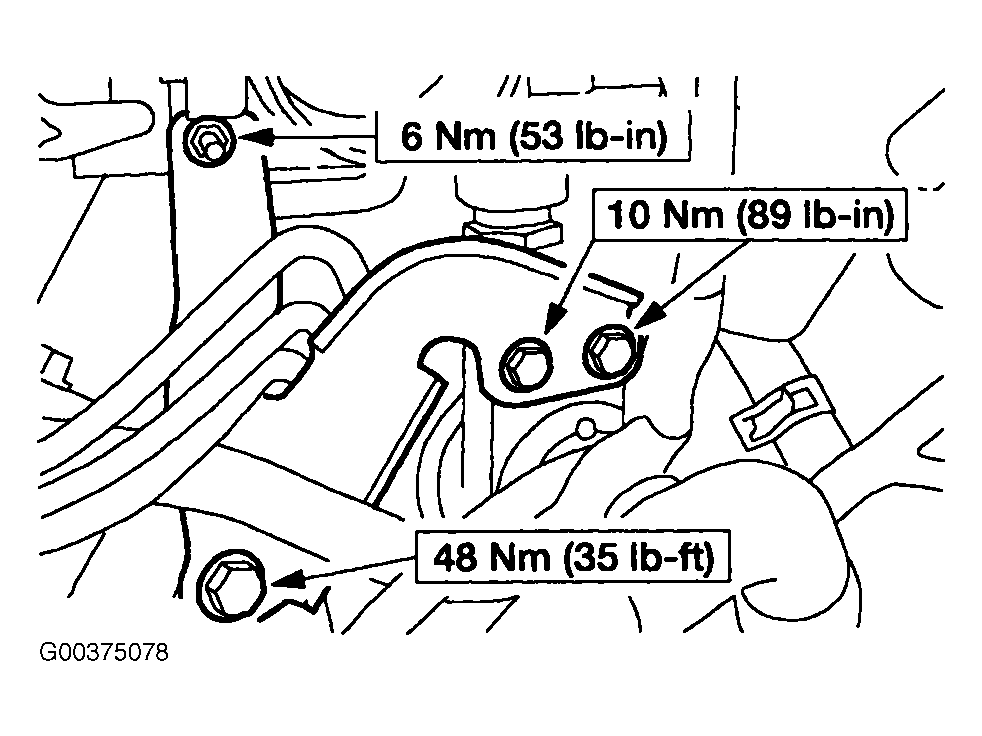

Remove the upper intake manifold support bracket. Remove the bolts. Remove the nut. See Fig 7.

Fig 7: Locating Upper Intake Manifold Support Bracket
Courtesy of FORD MOTOR CO.

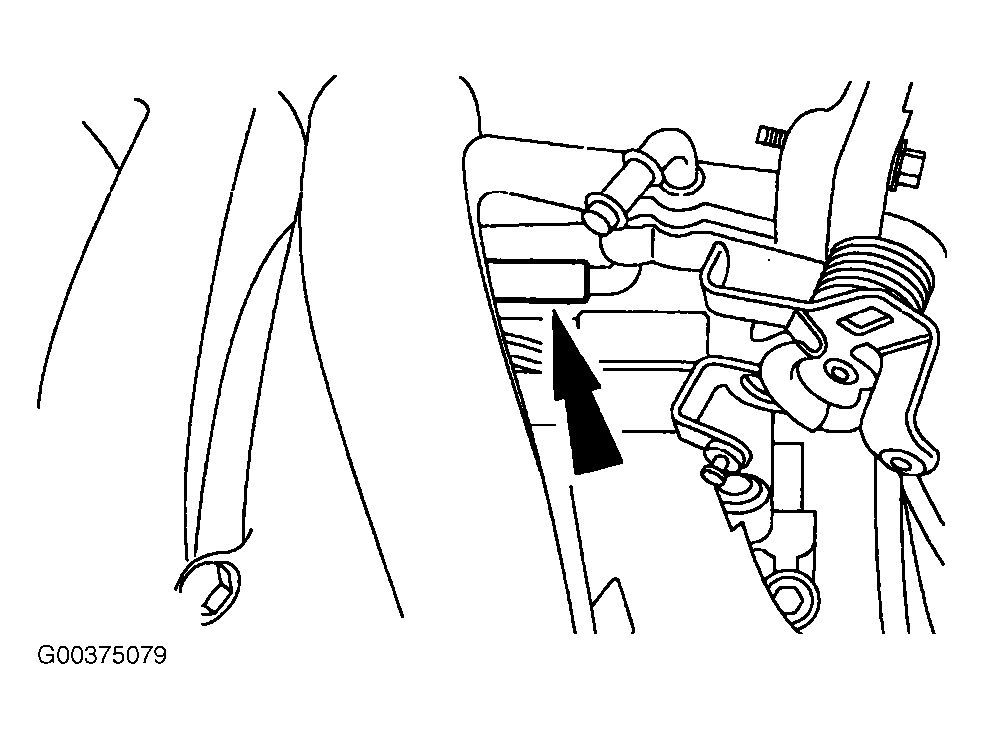

Disconnect the positive crankcase ventilation (PCV) tube from the upper intake manifold. See Fig 8.

Fig 8: Locating PCV Tube
Courtesy of FORD MOTOR CO.

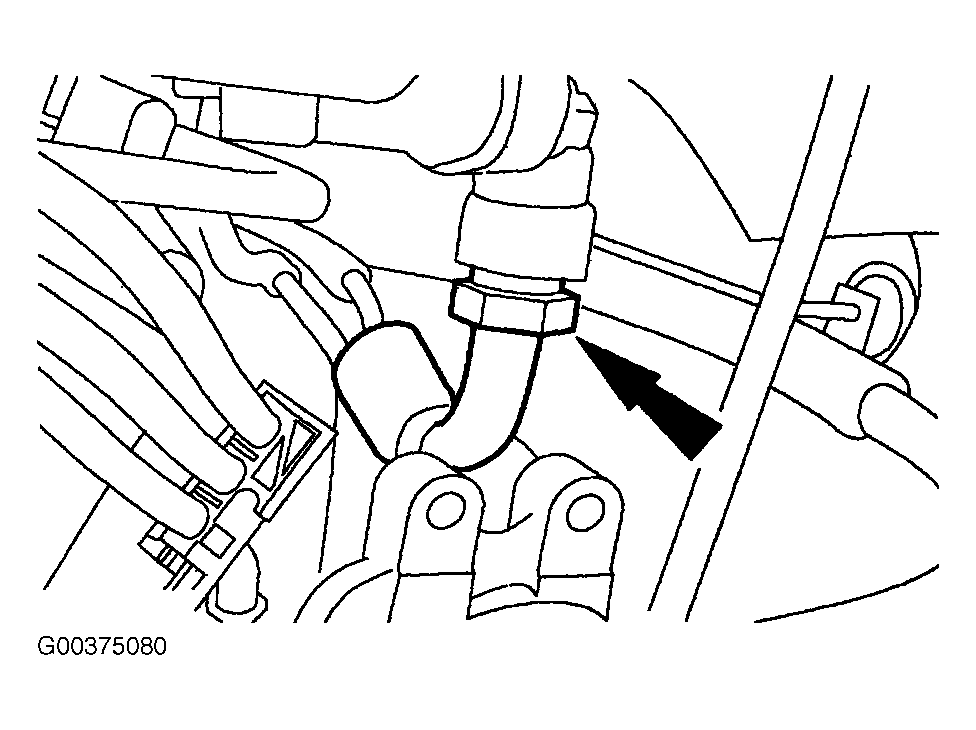

Disconnect the exhaust gas recirculation (EGR) tube from the EGR valve. Loosen the nut. See Fig 9.

Fig 9: Locating EGR Valve Tube
Courtesy of FORD MOTOR CO.
Disconnect the vacuum tube from the EGR valve. See Fig 10.

Fig 10: Locating EGR Valve Vacuum Hose
Courtesy of FORD MOTOR CO.

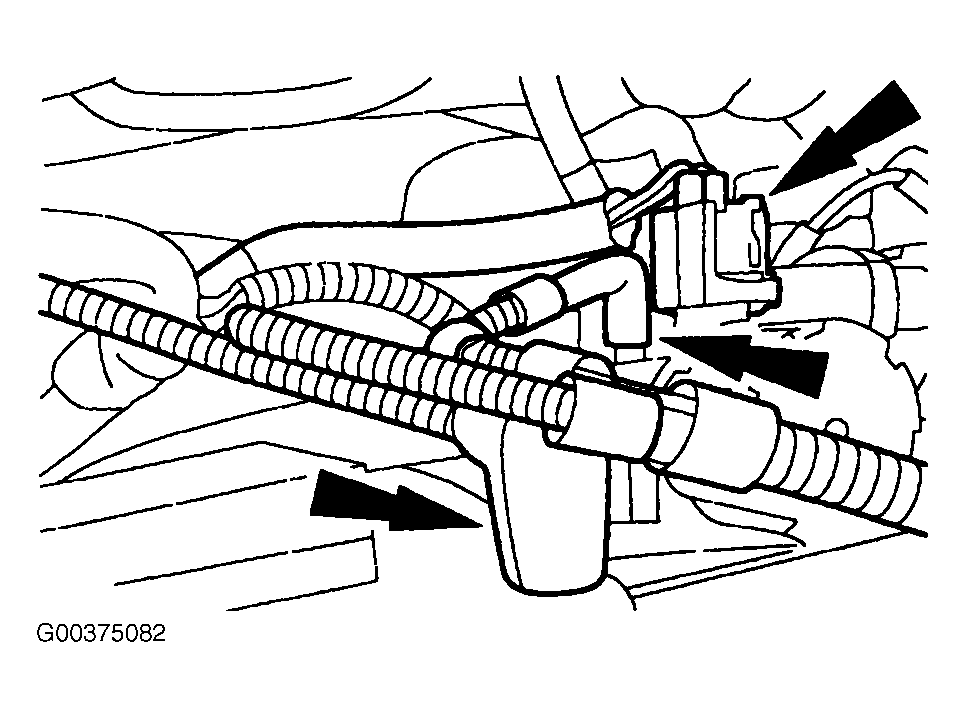

Disconnect the vacuum tube from the upper intake manifold and electronic vacuum regulator (EVR) and disconnect the electrical connector from the EVR. See Fig 11.

Fig 11: Locating EVR
Courtesy of FORD MOTOR CO.

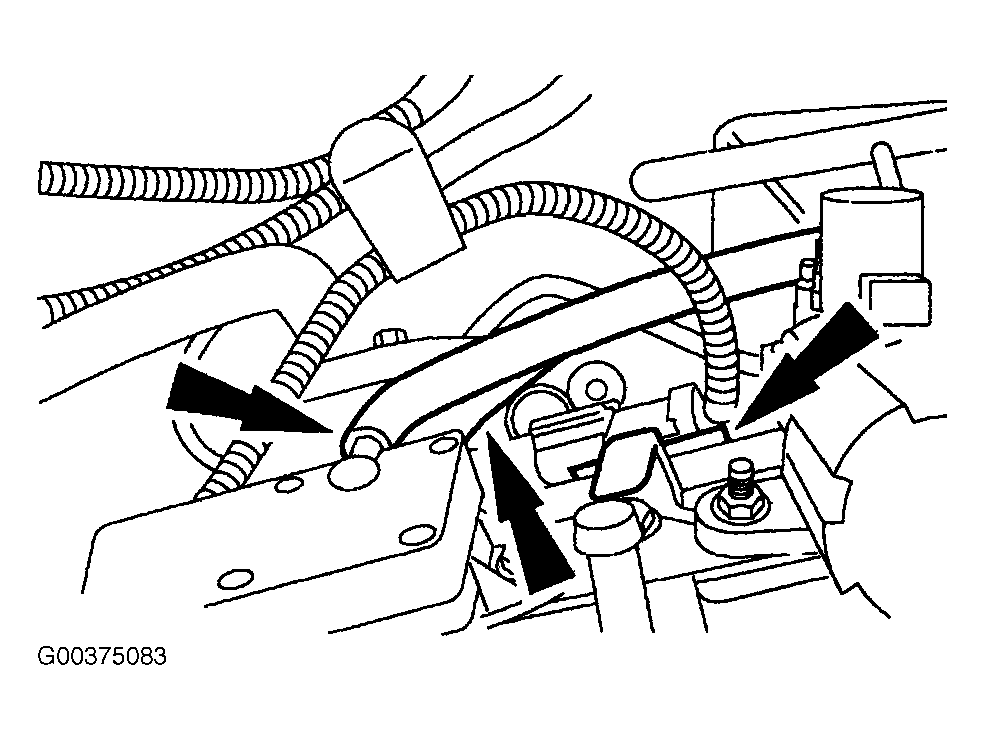

Separate the oxygen sensor connector retainer from the bracket and disconnect the differential pressure feedback EGR vacuum hoses. See Fig 12.

Fig 12: Locating HO2S Connector & Pressure Feedback EGR Vacuum Hose
Courtesy of FORD MOTOR CO.
Disconnect the engine degas hose, differential pressure feedback EGR electrical connector and wire harness retaining clip. See Fig 13.

Fig 13: Locating Engine Degas Hose
Courtesy of FORD MOTOR CO.

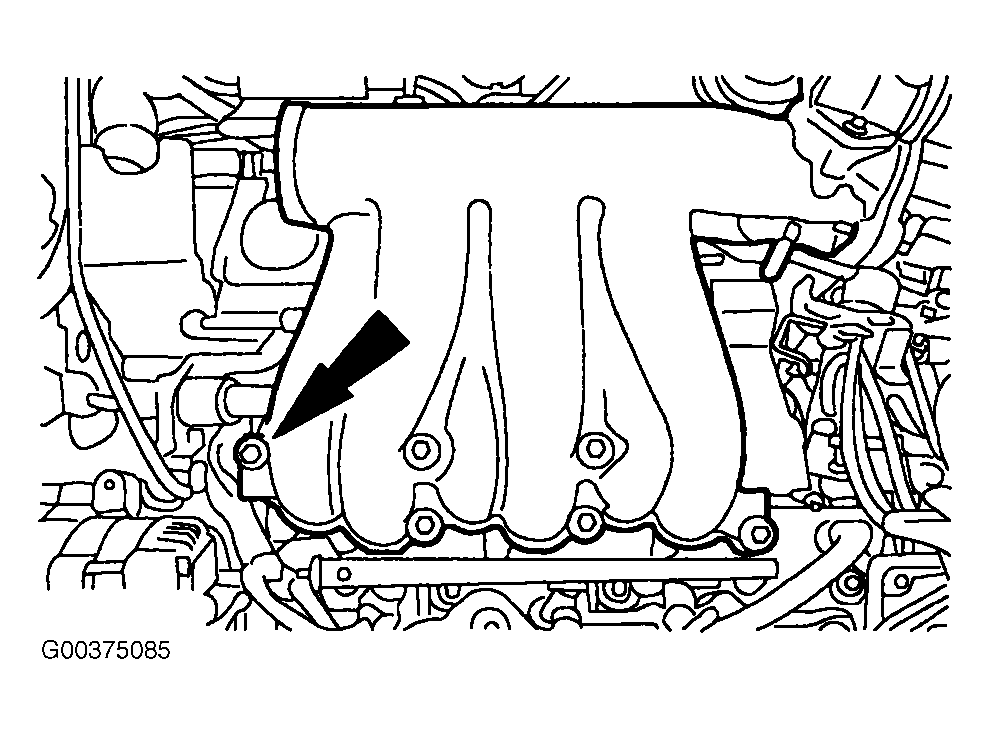

Remove the upper intake manifold. Remove the six bolts. Remove the intake manifold. See Fig 14. Remove the intake manifold gasket.

Fig 14: Removing Upper Intake Manifold (2000 Model Year)
Courtesy of FORD MOTOR CO.
