Removal & Installation
- Remove instrument cluster. See INSTRUMENT CLUSTER
. Remove miniature bulbs from instrument cluster. See INDICATOR/WARNING BULBS
.
- Remove 6 screws from instrument cluster main lens. Remove instrument cluster main lens. Remove 2 screws from instrument cluster mask. Remove instrument cluster mask and transmission range indicator from instrument cluster.
- Carefully remove speedometer, tachometer and fuel gauge/temperature gauge. See SPEEDOMETER/ODOMETER
, TACHOMETER
and FUEL GAUGE/TEMPERATURE GAUGE
.
- Carefully depress retainer clip and remove low fuel level warning switch from instrument cluster. See Fig 1
.

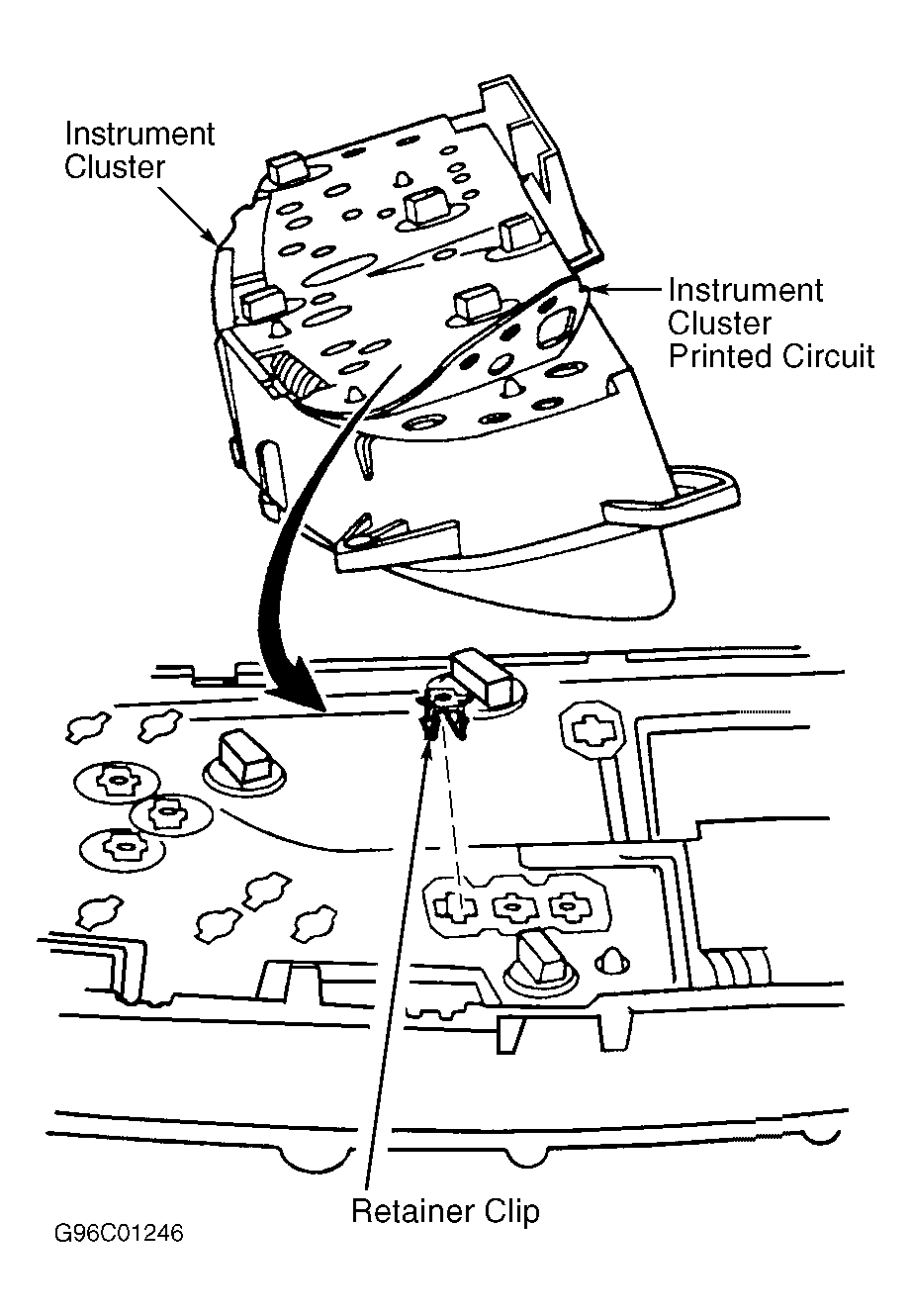

- Remove speedometer, tachometer and fuel gauge/temperature gauge retainer clips from instrument cluster. Carefully remove instrument cluster printed circuit from instrument cluster. See Fig 2
. To install, reverse removal procedure.
